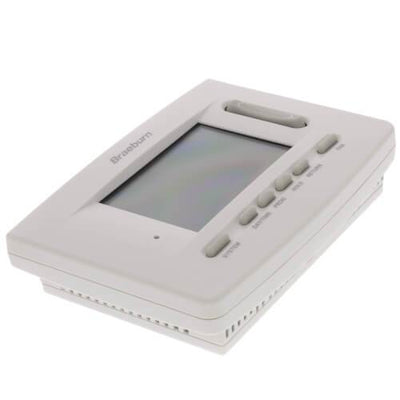

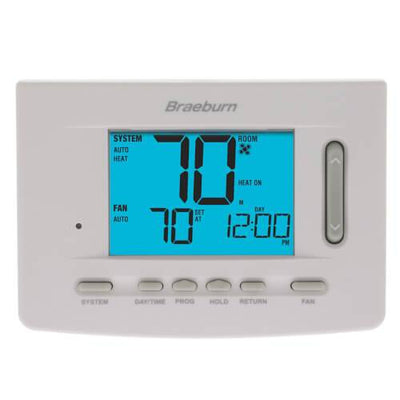

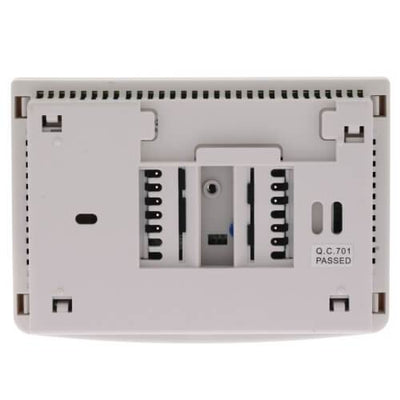

Braeburn Builder Model 5020 Programmable Thermostat (1 Heat/1 Cool)
- Programming: 7 Day, 5-2 Day, or Non-Programmable
- Warranty: 5 Year
- Model 5020 has been discontinued. Suggested replacement model is 4030.
$80.00 USD
SKU:
BR5020
ID:
PH501-0022
PRODUCT INFO
Features
- 7 Day, 5-2 Day or Non-Programmable
- Large 5 Sq. Inch Display w/ Bright Blue Backlight
- Bright Blue Backlight
- Auto or Manual Changeover
- SpeedBar® Mult-Function Button
- Adjustable Temperature Limits
- Indoor or Outdoor Remote Sensing
- SpeedSet 7 Day Programming Mode
- User Selectable Service Monitors
- Hardwire or Battery Powered
- Multi-Level Keypad Lockout
- Separate User and Installer Reset Buttons
- Programmable Fan Operation
- Temporary Override Limits
- Residential and Commercial Modes
- English/Spanish Packaging and Instructions
- Meets California Tite 24 Guidelines
- 5 Year Warranty
Braeburn 5020 Replaces*
- Honeywell* TH611OD, TH621OU, TH622OD
- Emerson* 1F80-0471, 1F85-0422, 1F85U-22PR,
*Verify specific application requirements. All trademarks are the property of their respective owners
SPECIFICATIONS
| Dimensions: | 3.86” x 5.11” x 1.42” | |
| Electric Rating: | 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals) | |
| AC Power: | 18-30 Volt AC | |
| DC Power: | 3.0 Volts DC (2 “AA” Alkaline batteries included) | |
| Compatibility: | Single stage gas, oil or electric systems Single stage heat pumps with or without auxiliary heat 250mv – 750mv millivolt heating systems | |
| Control Range: | 45° to 90° F (7° to 32° C) | |
| Display Range: | 40° to 99° F (5° to 37° C) | |
| Accuracy: | +/- 1° F (+/- .5° C) | |
| Temperature Differential: | 5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) | |
| Storage Temperature: | 14° to 140° F (-10° to 60° C) | |
| Operating Humidity: | 5% to 95% Relative Humidity | |
| Terminations: | Rc, Rh, O/B/V3, Y1, W1/E, G, C, S1, S2 |
