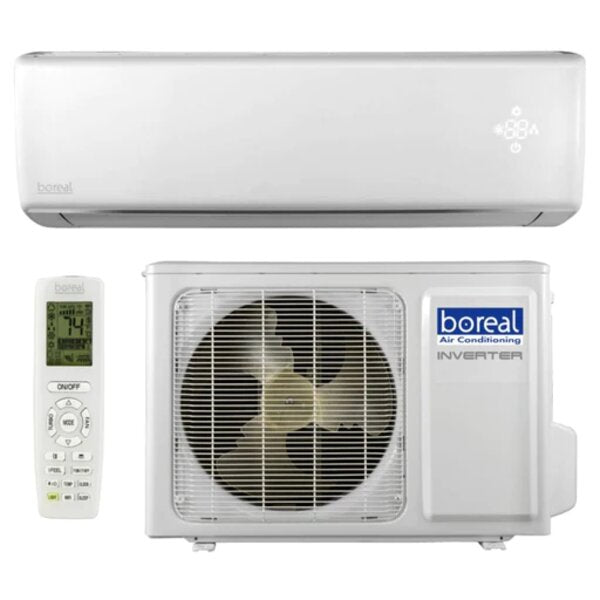

Boreal BRISA 9,000 BTU 17 SEER Wall Mount Ductless Mini Split System 3/4 Ton 230V
Rated Capacity: 9,000 BTU Cooling
Product Includes

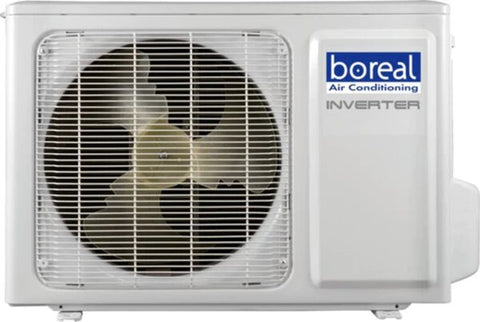

(1) Boreal BRISA - 9,000 BTU - Outdoor Condenser - Single Zone Only (BRS09HPJ1OA)
(1) Boreal BRISA 9,000 BTU Wall Mounted Unit - For Single Zone (BRS09HPJ1IA)
Wireless Remote Control
Required, but not included: 1/4"" x 3/8"" line set
Product Includes
(1) Boreal BRISA - 9,000 BTU - Outdoor Condenser - Single Zone Only (BRS09HPJ1OA)
(1) Boreal BRISA 9,000 BTU Wall Mounted Unit - For Single Zone (BRS09HPJ1IA)
Wireless Remote Control
Required, but not included: 1/4"" x 3/8"" line set
$839.00 USD
SKU:
BRS09HPJ1A
ID:
BRS100-0006
Categories:
PRODUCT INFO
SEER / EER: 17 / 10.25
HSPF / COP: 9 / 3.6
Energy Star: No
Cooling Temperature Range: 0 - 115
Heating Temperature Range: -4 - 75
Power Supply: 208-230V / 1Ph / 60Hz
Refrigerant Charge: R410A (oz): 24
Limited Warranty: 3/5 Years on parts/compressor
SPECIFICATIONS
| Capacity | 9,000 BTU | |
| Cooling Capacity | 2457 - 9600 | |
| Cycle Hertz | 60 Hz | |
| HSPF | 9 | |
| Inverter | Yes | |
| Item Weight | 83.0000 pounds | |
| Line Set Size For Bundle | 1/4" x 3/8" | |
| Minimum Circuit Amps | 10 | |
| Phase | Single | |
| Refrigerant | R-410A | |
| Room Size | 300 - 500 ft2 | |
| UPC | 813919020386 | |
| Zone Capability | 1 Zone | |
| Equipment Type | Heat Pump | |
| SEER | 17 | |
| EER | 10.25 | |
| Voltage | 208-230 VAC | |
| Energy Star Rated | No | |
| Heating Capacity | 2457 - 11500 | |
| Tonnage | 0.75 | |
| Product Family | Brisa | |
| Mounting Type | Wall |
