Daikin 18,000 BTU 18.0 SEER Ductless Heat Pump 19-Series Wall Mounted Air Conditioning System

Availability:
In-Stock
Rated Capacity: 18,000 BTU Cooling, 21,600 BTU Heating.

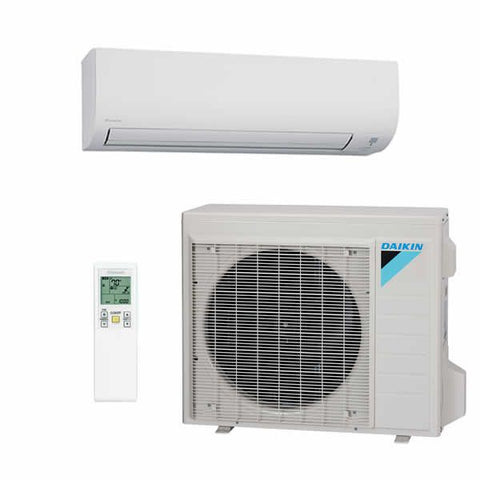

Product Includes

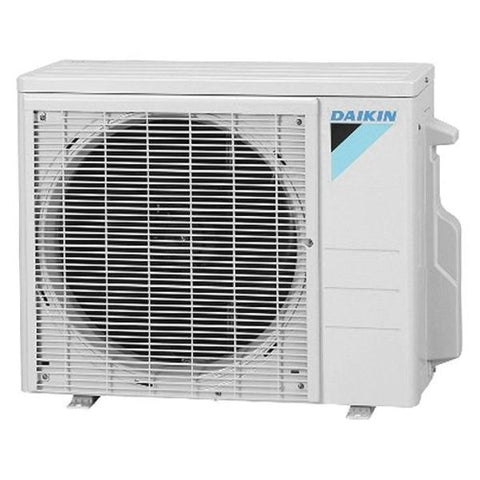

(1) Daikin - 18,000 BTU - 19 Series Outdoor Condenser - Single Zone Only (RX18NMVJU)

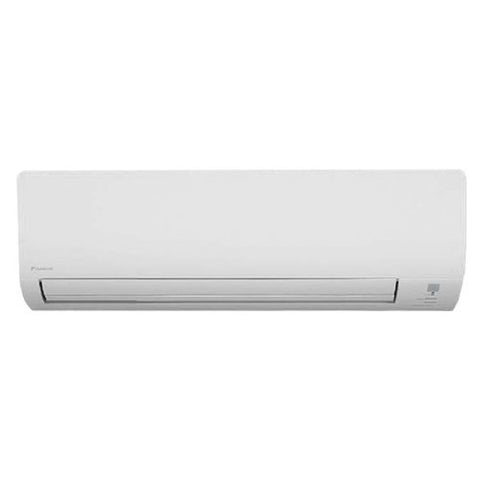

(1) Daikin 19 Series 18,000 BTU Wall Mounted Unit - For Single Zone (FTX18NMVJU)
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

The X18NMVJU is a wall mounted system perfect for all your single zone heating and cooling needs. This system pairs a Daikin wall mounted indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.

Product Note

This product requires the following accessories for installation:

  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris. Adding these accessories to your order will provide a complete, ready-to-install mini split system.

SPECIFICATIONS



General Information
TypeWall Mounted
Product Line19-Series
Operating ModeHeating and Cooling
Number of Zones1
Refrigerant TypeR-410A
Indoor Unit Size(s)18
DOE Regional ComplianceNationwide
Line Set Size1/4" x 1/2"


Performance
Cooling BTU18000
Cooling Capacity18000 BTU
Heating Capacity21600 BTU
SEER18.0
EER12.5
HSPF9.0
Low Ambient HeatingNo
Cooling Power Input1440 Watts
Heating Power Input1760 Watts
Minimum Outdoor Temperature for Heating5 F
Minimum Outdoor Temperature for Cooling50 F


Certifications
Energy Star ListedYes
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number8064267


Dimensions
Product Weight123 Pounds
Shipping Weight127 Pounds
