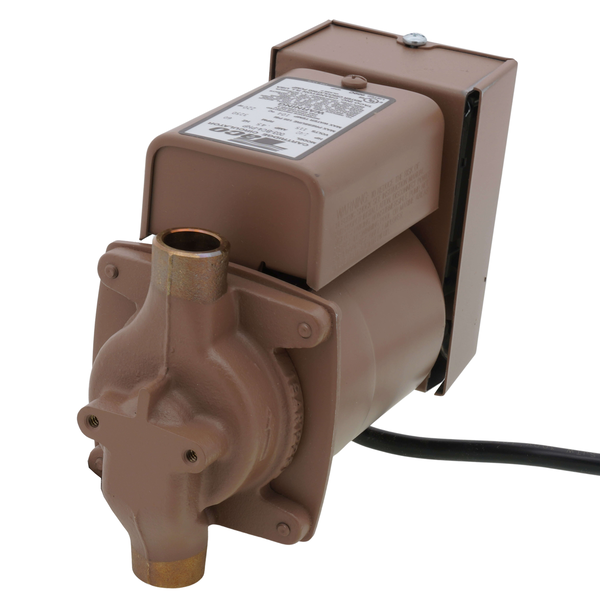

Taco 003-BC4-PNP Plumb n' Plug Pump w/ Analog Timer, 1/40 HP (1/2" Sweat)
The Plumb n’ Plug with analog timer will cycle the circulator during peak usage periods such as early morning or early evening. An optional aquastat is available for constant circulation applications to maintain temperature between 95°F and 115°F. The Taco 003 PNP is ideal for recirculation loops. Its design operating condition of 3 gpm at 3 feet of head helps to reduce erosion, corrosion and noise in system piping. Use the 003 PNP for systems up to 200 total feet (supply and return) of 3/4" pipe. Installation of isolation valves, pipe insulation and flow checks are recommended
Features:
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 003-001RP
Features:
- 24 Hour Analog Timer
- 15 Minute ON/OFF Intervals
- Easy-to-Use Clock Timer
- Factory installed 6' line cord
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 003-001RP
$757.00 USD
SKU:
003-BC4-PNP
ID:
TC200-2S9-0661
Categories:
SPECIFICATIONS
| Body Type | Bronze | |
| Application | Heating | |
| Amperage | 0.43 | |
| Max Pressure (PSI) | 125 | |
| Max Flow (GPM) | 7 | |
| Flow Range (GPM) | 0-7 | |
| Max Head (Ft) | 4.5 | |
| Head Range (Ft) | 0-4.5 | |
| Horse Power | 1/40 |
| Temperature Range | 40°F - 230°F | |
| Voltage | 115V | |
| Phase | 1 | |
| Hertz | 60 | |
| RPM | 3250 | |
| Warranty | 3 Years | |
| Type | Pump | |
| Connection Type | Sweat | |
| Connection Size | 1/2'' |
