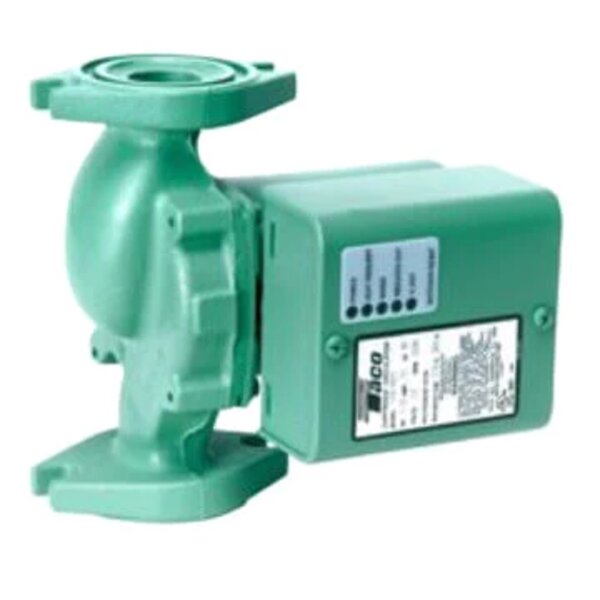

Taco 007-VRF5 Variable Speed Cast Iron Circulator, Standard Flange, 1/25 HP
The Taco 007 Cartridge Circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.
The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems. Available in Cast Iron or Stainless Steel construction with universal flanged connections. The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit. Ideal for a wide range of applications.
Product Features
The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems. Available in Cast Iron or Stainless Steel construction with universal flanged connections. The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit. Ideal for a wide range of applications.
Product Features
- Standard High Capacity Output- Compact Design
- Quiet, efficient operation
- Direct drive - Low power consumption
- Unique Replaceable Cartridge design (Field serviceable)
- Self Lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
- Universal Flange to Flange Dimensions
- Cast Iron or Stainless Steel Construction
$1,360.00 USD
SKU:
007-VRF5
ID:
TC200-2S9-0649
Categories:
SPECIFICATIONS
Type | Var. Speed Pump | |
Horse Power | 1/25 | |
Connection Type | Flanged x Flanged | |
Max Pressure (PSI) | 125 | |
Voltage | 115V | |
Phase | 1 |
Max Head (Ft) | 7.5 9 | |
Amperage | 0.52 | |
Material | Cast Iron | |
RPM | 3250 | |
Max Fluid Temp | 230°F | |
Hertz | 60 |
