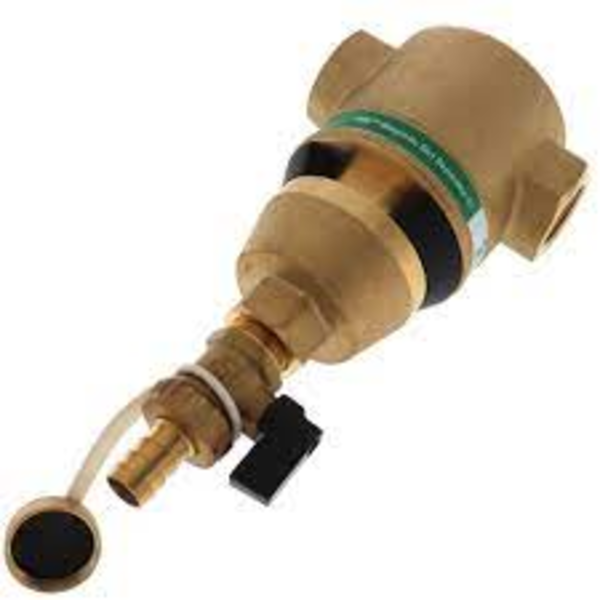

Taco 49MD-150C-2 1-1/2" Brass Magnetic Dirt Separator (Sweat)
Taco’s 4900 Series™ of magnetic dirt separators increase system life and efficiency by removing ferrous material and other harmful, loose particles from closed loop hydronic heating systems. A powerful, service-free magnetic ring and convenient blow down valve are included for quick and easy system maintenance. Available with Sweat or NPT connections in sizes ranging from 3/4” – 2”.
Product Specifications
Product Specifications
- Housing: Brass
- Max. Operating Pressure: 150 psi
- Max. Operating Temperature: 240°F
- Min. Operating Temperature: 35°F
- Max. Velocity: 5 feet/sec
- Water or Water/Glycol up to 50% Glycol, Closed Systems
$391.00 USD
SKU:
49MD-150C-2
ID:
TC200-2S9-0310
Categories:
SPECIFICATIONS
| Body Type | Brass | |
| Application | Heating | |
| Product Type | Dirt Eliminator | |
| Size | 1-1/2'' | |
| Type | Magnetic |
| Connection Type | C x C | |
| Connection Method | Sweat | |
| Max Pressure (PSI) | 150 | |
| Max Temp (F) | 240°F | |
| Flow Capacity (Cv) | 35 |
