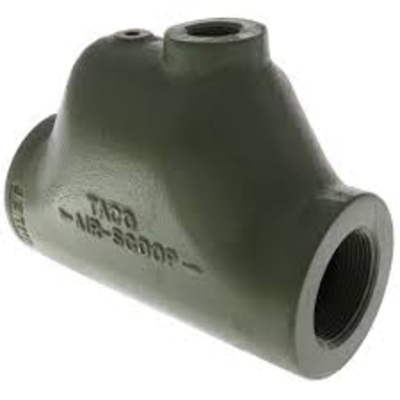

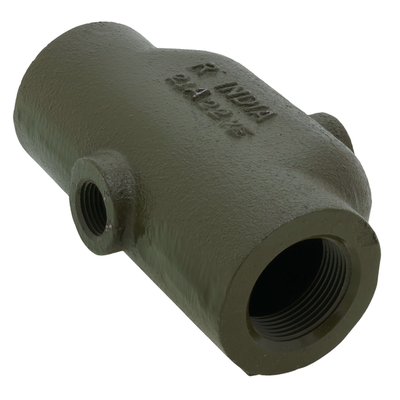

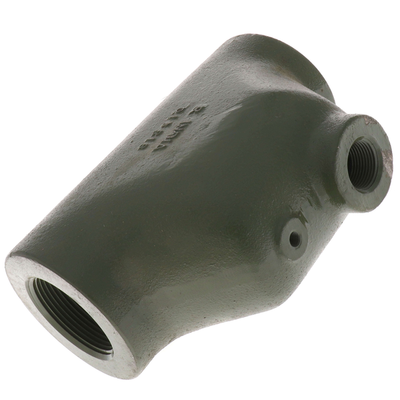

Taco 435-5 2-1/2" Air Scoop
The special design and internal baffles of Taco Air Scoops slow water velocity to separate the air from solution. Thanks to this design, Taco Air Scoops efficiently remove air to provide noiseless, air-free hydronic heating, cooling or combination systems.
Taco Air Scoops also provide an economic way to integrate air elimination by the connection of either a plain steel or diaphragm expansion tank.
Features Include:
One-Piece, Cast Iron Construction
Engineered Baffle to Separate Air from Water
Never Requires Servicing
Maximum Operating Pressure: 125 PSI (862kPa)
Maximum Operating Temperature: 300 degrees F (135 degrees C)
Recommended Flow Rate: 4 ft./sec.
Maximum Flow Rate: 8 ft./sec.
Connection Type: Threaded
Body Type: Cast Iron
Taco Air Scoops also provide an economic way to integrate air elimination by the connection of either a plain steel or diaphragm expansion tank.
Features Include:
One-Piece, Cast Iron Construction
Engineered Baffle to Separate Air from Water
Never Requires Servicing
Maximum Operating Pressure: 125 PSI (862kPa)
Maximum Operating Temperature: 300 degrees F (135 degrees C)
Recommended Flow Rate: 4 ft./sec.
Maximum Flow Rate: 8 ft./sec.
Connection Type: Threaded
Body Type: Cast Iron
$269.00 USD
SKU:
435-5
ID:
TC200-2S9-0227
Categories:
SPECIFICATIONS
| Bade Type | Cast Iron | |
| Application | Heating | |
| Size | 2-1/1'' | |
| Connection Type | FNPT x FNPT | |
| Connection Method | Threaded | |
| Product Type | Air Scoop | |
| Max Pressure (PSI) | 125 | |
| Max Temp (F) | 300°F |
