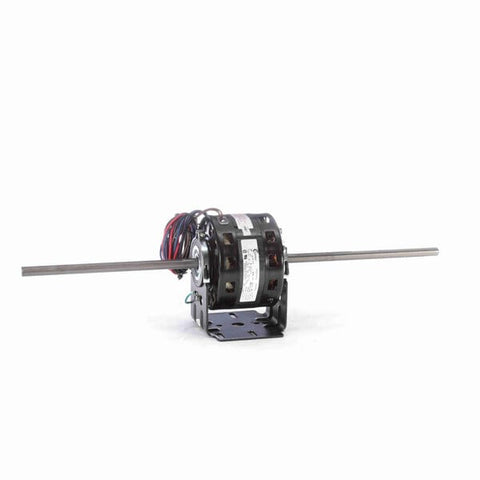

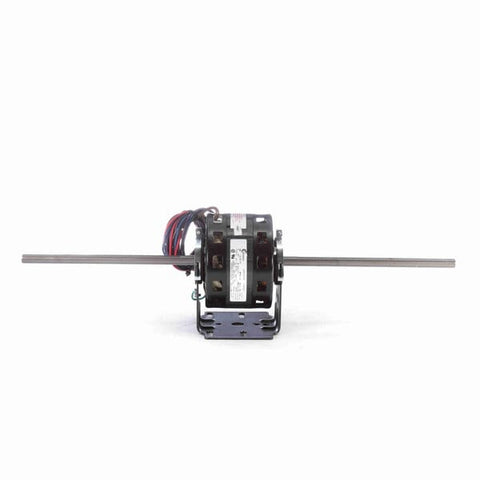

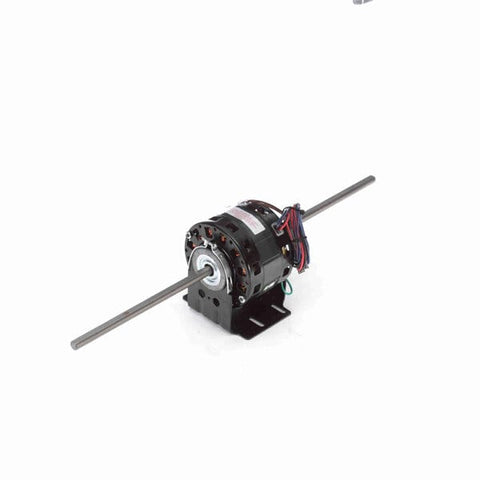

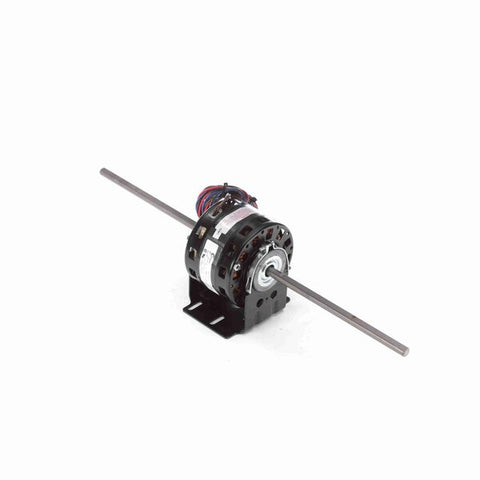

Century Coil / Room Air Conditioner Motor, 1075 RPM, 1/6-1/8-1/10 HP, 277 V, 42 Frame, Open Air Over
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 40" Leads with Quick Connect Terminals
- Resilient Base
$441.00 USD
PRODUCT INFO
Applications
277 V direct drive blower wheel heating/air conditioning consoles, fan coil units, through-the-wall air conditioners, rooftop equipment
Features
Generous double shaft extensions which may be cut off to desired length or changed to a single shaft motor with desired rotation. 3- or 4-speed. Adaptable to most application requirements where the motor is located in the airstream Automatic reset thermal protection. Shaft: same length both extensions.
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674010872 |
| Output HP | 1/6,1/8,1/10 Hp |
| Frequency | 60 Hz |
| Current | 0.9,0.7,0.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 277 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 9.3X.5X9.3 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Na |
| Overall Length | 22.00 in |
| Shaft Diameter | 0.500 in |
