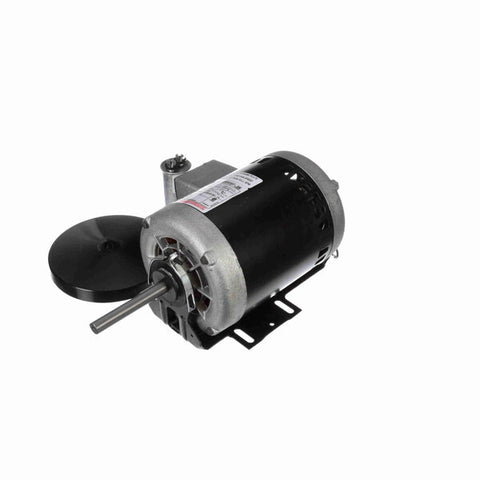

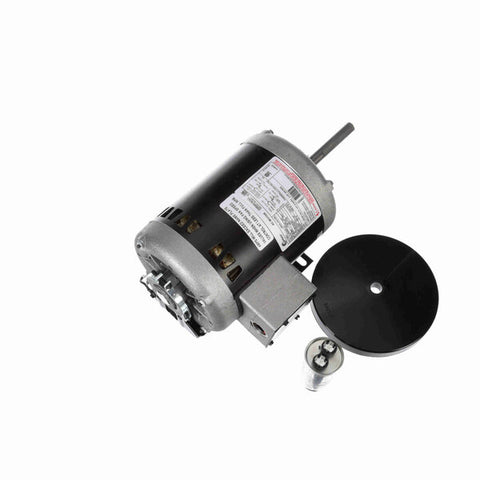

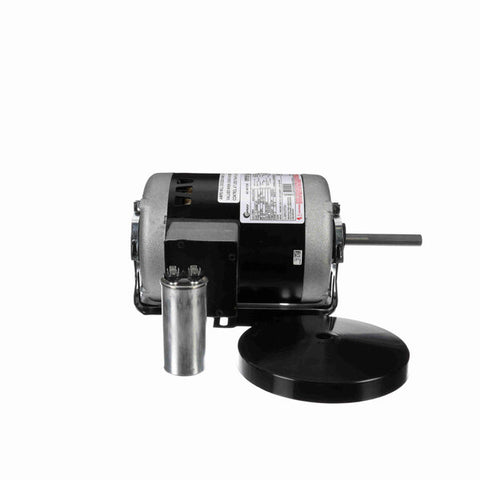

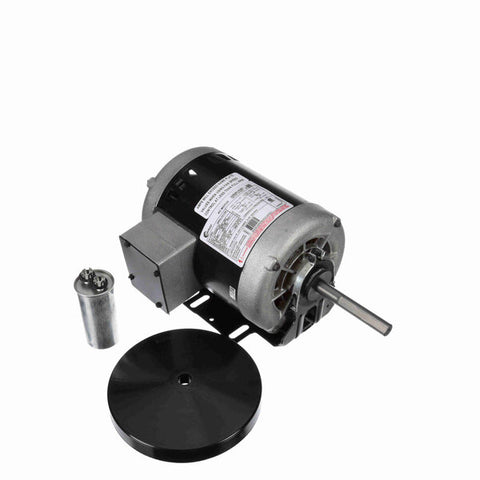

Century OEM Replacement Motor, 1100 RPM, 3/4 HP, 200-230/460 V, 56Z Frame, Open Drip Proof
- Double sealed ball bearings
- Automatic reset thermal protector
- Quick-connect design
- 1" (minimum) extended thru bolts
- 5/8" dia. Shaft with both keyway and flat
- HM102-0001 replaces the following brands and item numbers:
B-095D, K63HXEFY-4599, K63HXEBD-4498, KCP48TG181S, KCP49U192S 8-184797-01
$920.85 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674016546 |
| Output HP | 3/4 Hp |
| Frequency | 60 Hz |
| Current | 4.8-4.2/2.1 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | L56Z |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 200-230/460 V |
| Speed | 1100 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Drip Proof |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor, Single Or Dual Voltage |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 6.25 in |
| Shaft Extension | 4.13 in |
| Rotation | Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 14.41 in |
| Shaft Diameter | 0.625 in |
