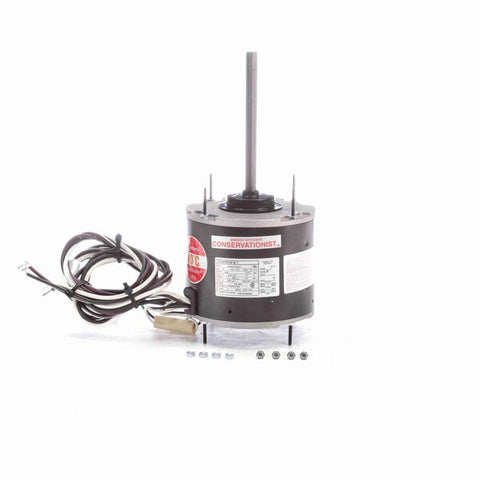

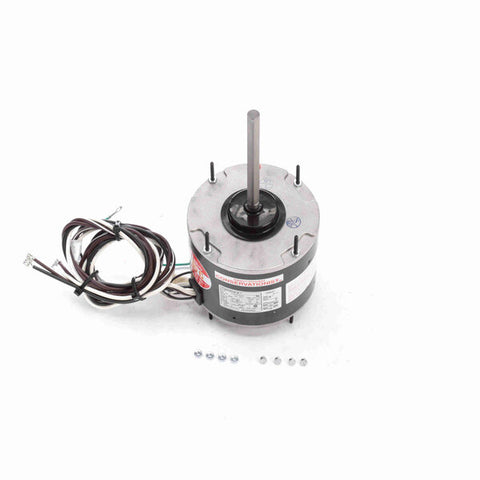

Century Condenser Fan Motor, 825 RPM, 1/4 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- HeatMaster Ultra - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 80°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame
$281.40 USD
PRODUCT INFO
Applications
For use with head pressure/speed controls
Features
Automatic thermal protection. Three-Year Warranty. UL and CSA approved Class F Insulation achieves superior dielectric strength for long thermal life |Double sealed ball bearing with high temperature synthetic grease. Water-resistant reversing plug. 48" color coded high temperature leads for easy identification and installation. Mounts by belly band, adjustable extended thru-bolts, or Rheem/Trane mounting holes, with screws supplied
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674068828 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.2 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 825 rpm |
| Phase | 1 |
| Insulation Class | F |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 80 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 8 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 4.00 in |
| Shaft Extension | 6.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.00 in |
| Shaft Diameter | 0.500 in |
