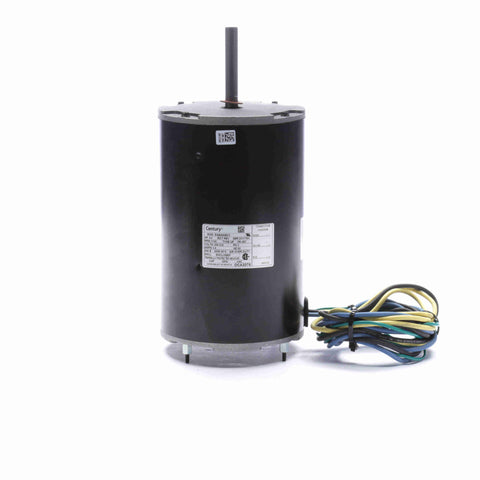

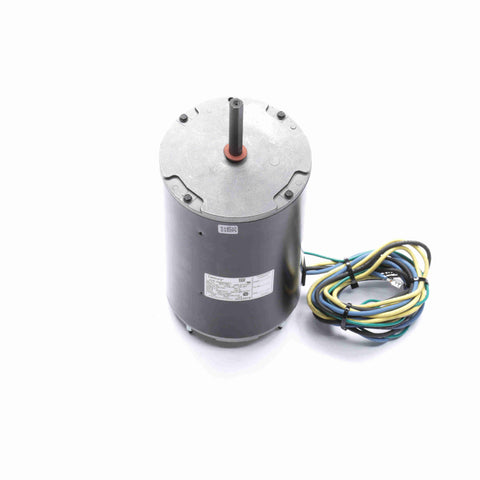

Century OEM Replacement Motor, 1140 RPM, 3/4 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 60" Leads with Quick Connect Terminals
- Extended Studs Opposite Shaft End, Vertical Shaft Down
- 3 Phase
- HM102-0004 replaces the following brands and item numbers: Carrier #HD46GK230
$805.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674027276 |
| Output HP | 3/4 Hp |
| Frequency | 60 Hz |
| Current | 3.8 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Three Phase |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 8.13 in |
| Shaft Extension | 1/2" FLAT in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.60 in |
| Shaft Diameter | 0.500 in |
