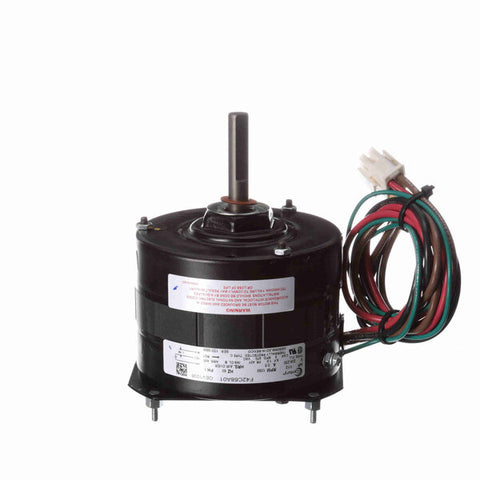

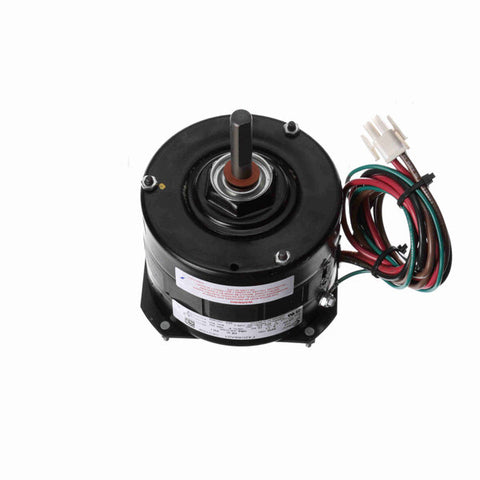

Century OEM Replacement Motor, 1050 RPM, 1/12 HP, 208-230 V, 42 Frame, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 32" Leads with AMP Terminal Housing
- Extended Studs Lead End, Vertical Shaft Down
- HM102-0031 replaces the following brands and item numbers: Evcon #F42B53A48 or 1468-41L
$273.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674027498 |
| Output HP | 1/12 Hp |
| Frequency | 60 Hz |
| Current | 0.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Plate |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 6.66 in |
| Rotation | Clockwise Lead End |
| Frame Material | Na |
| Overall Length | 6.66 in |
| Shaft Diameter | 0.500 in |
