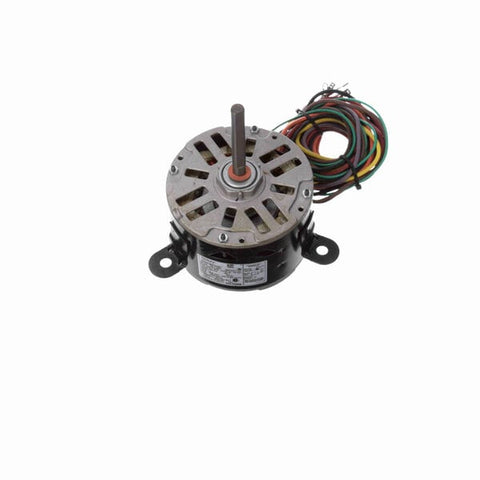

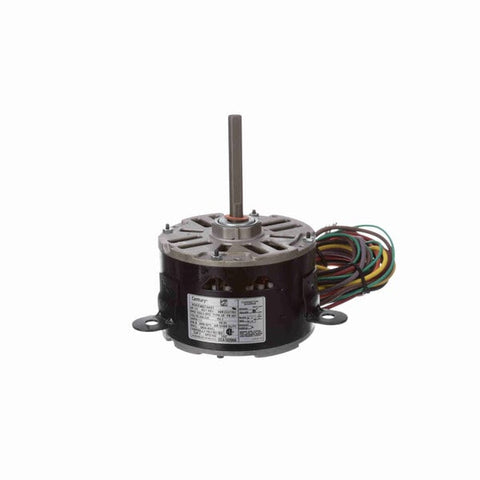

Century OEM Replacement Motor, 1050 RPM, 1/5 HP, 208-230 V, 48 Frame, Semi Enclosed
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Not Supplied with Motor)
- Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air Over
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 52" Leads with Quick Connect Terminals
- Lug Mount
- HM102-0038 replaces the following brands and item numbers: are direct replacements for condenser fan motors on "The Round One" by Carrier
$346.50 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674027207 |
| Output HP | 1/5 Hp |
| Frequency | 60 Hz |
| Current | 1.3 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Lug |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.13 in |
| Shaft Extension | 4.2 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 7.82 in |
| Shaft Diameter | 0.500 in |
