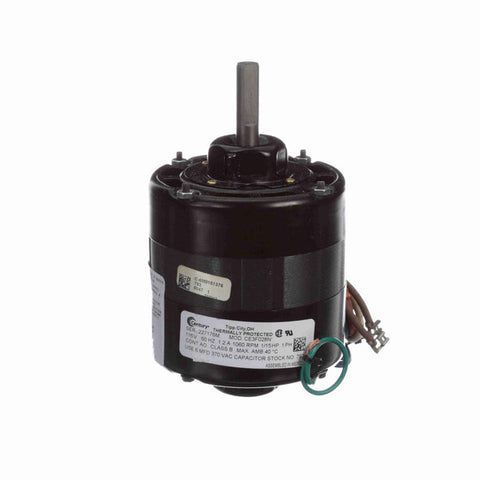

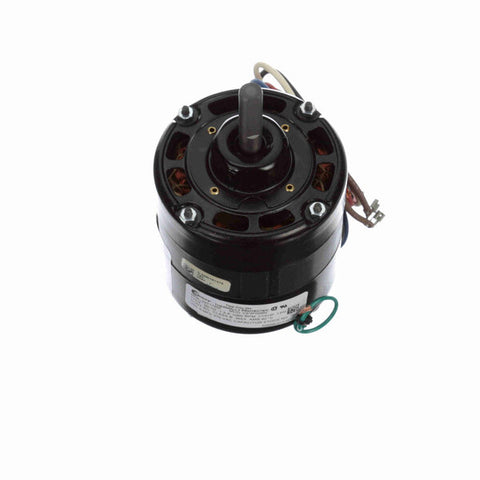

Century OEM Replacement Motor, 1060 RPM, 1/15 HP, 115 V, 4.4" Diameter, Open Air Over
- Heating - Ventilating - Welding Unit Motor
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 24.5" Leads
- Resilient Ring Mounting
- HM102-0030 replaces the following brands and item numbers: Universal #CE3F025, CE3F004, and CE3F005
$443.10 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674007988 |
| Output HP | 1/15 Hp |
| Frequency | 60 Hz |
| Current | 1.2 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 4.4 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1060 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 1/2 X 2 5/16 in |
| Rotation | Reversible |
| Frame Material | Na |
| Overall Length | 7.20 in |
| Shaft Diameter | 0.500 in |
