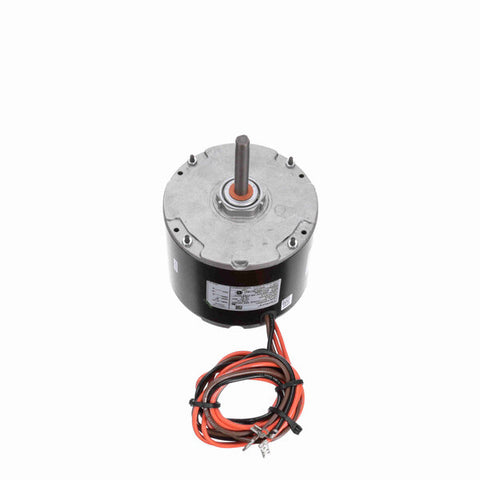

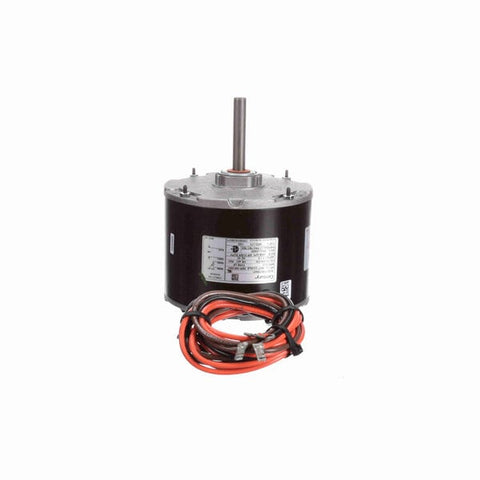

Century OEM Replacement Motor, 1075 RPM, 1/3 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 39" Leads with Flag Terminals
- Extended Studs Shaft End, Belly Band Mount, Hex Mounting Hub Shaft End
- HM102-0037 replaces the following brands and item numbers: 51-21189-01, KA55HZRGR-7898
$203.70 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674028174 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 1.5-1.8 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 3.38 in |
| Shaft Extension | 3.3 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 7.61 in |
| Shaft Diameter | 0.500 in |
