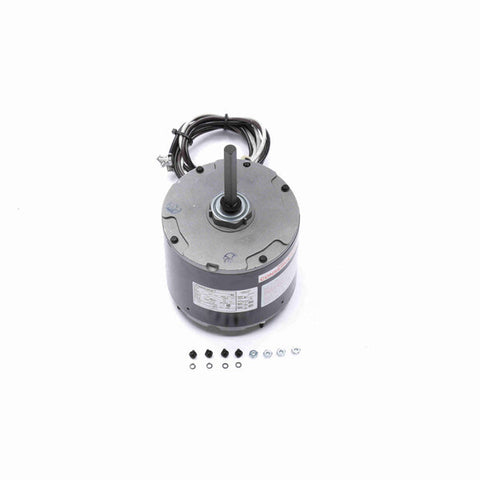

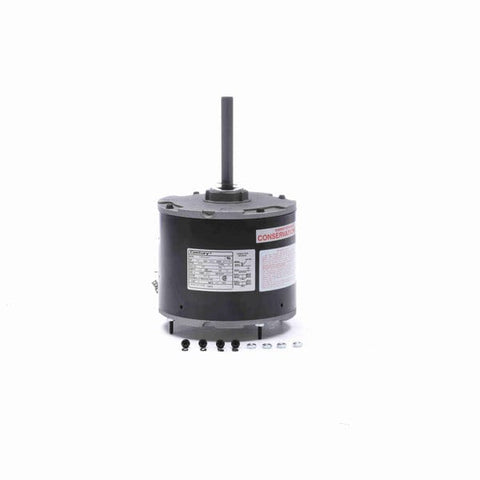

Century OEM Replacement Motor, 1075 RPM, 1/3 HP, 460 V, 48 Frame, Totally Enclosed Air over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads with Quick Connect Terminals
- Extended Studs Opposite Shaft End, Mounting Holes in Shell
- HM102-0035 replaces the following brands and item numbers: Rheem #51-21853-84, Weatherking #8101-5577 and GE #5KCP39GGN408AS
$280.35 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674010841 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 0.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 4.00 in |
| Shaft Extension | 4.2 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 9.26 in |
| Shaft Diameter | 0.500 in |
