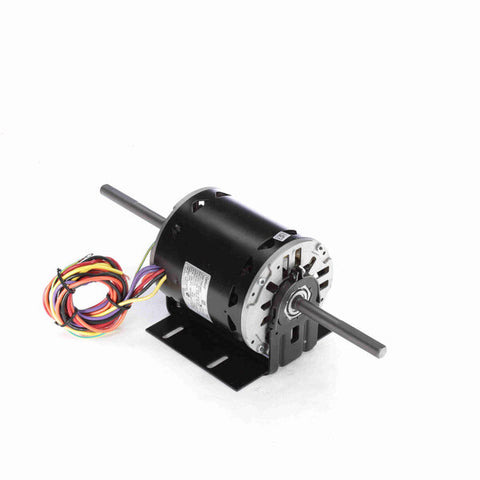

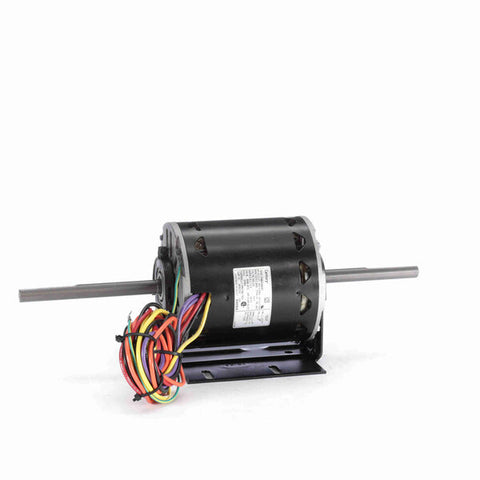

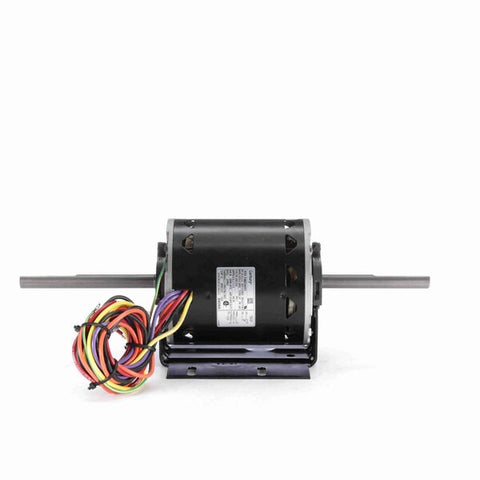

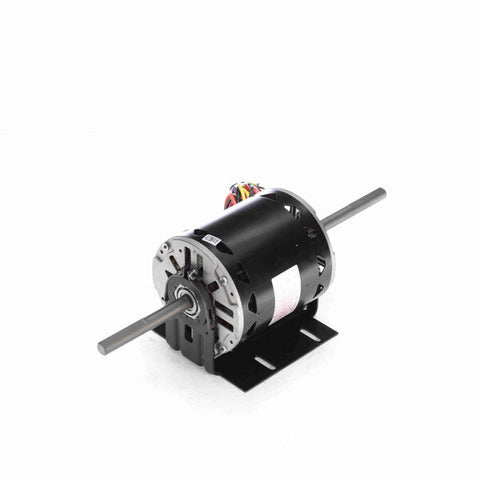

Century OEM Replacement Motor, 1075 RPM, 3/4-1/2-1/3 HP, 208-230 V, 48 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Ball Bearing
- 5/8" Diameter Double Shaft with Flat
- 54" Leads
- Resilient Base
- HM102-0039 replaces the following brands and item numbers: Lennox 28F0101, EM K55HXNNZ7057, GE 5KCP39PGD852AS
$593.25 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674011213 |
| Output HP | 3/4,1/2,1/3 Hp |
| Frequency | 60 Hz |
| Current | 6.6,3.7,2.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 5.63 in |
| Shaft Extension | 6.5 X .6 X 5.3 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 18.00 in |
| Shaft Diameter | 0.625 in |
