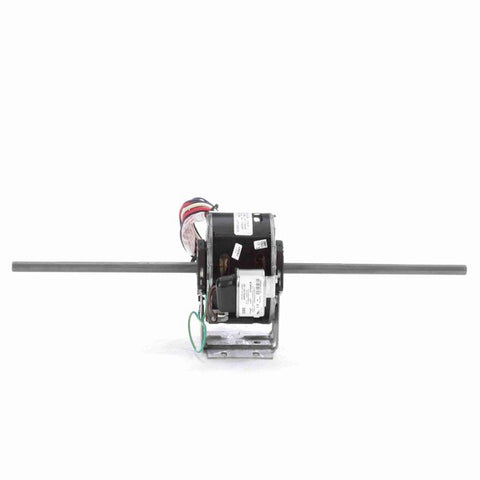

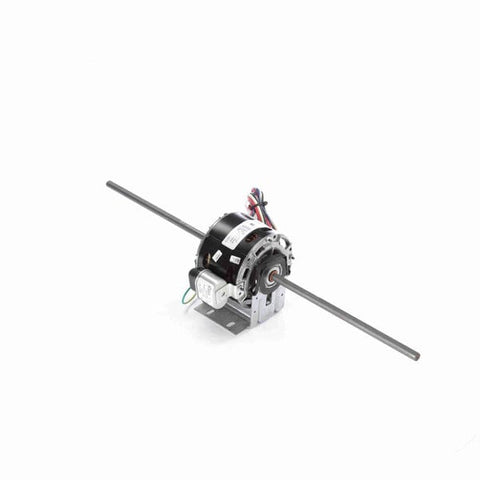

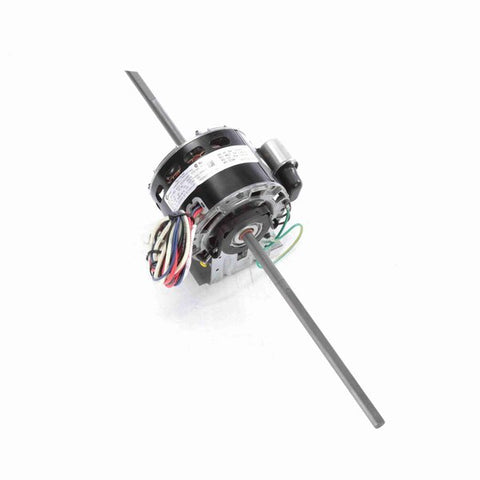

Century OEM Replacement Motor, 1100 RPM, 1/15, 1/45, 1/60 HP, 115 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 40" Leads
- Resilient Base
$386.40 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674008077 |
| Output HP | 1/15, 1/45, 1/60 Hp |
| Frequency | 60 Hz |
| Current | 0.8 - 0.5 - 0.35 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1100 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.17 in |
| Shaft Extension | 10.8 X .5 X 10.9 in |
| Rotation | Clockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length: | 25.43 in |
| Shaft Diameter | 0.500 in |
