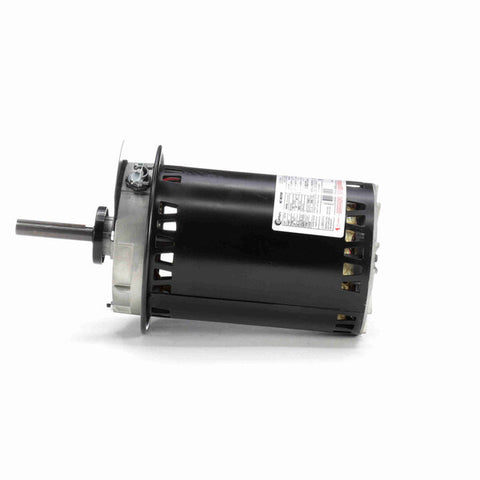

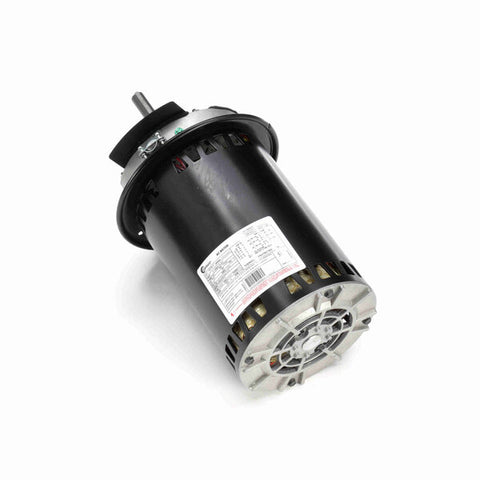

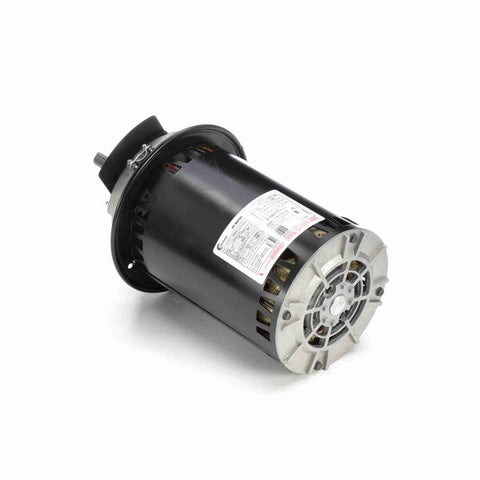

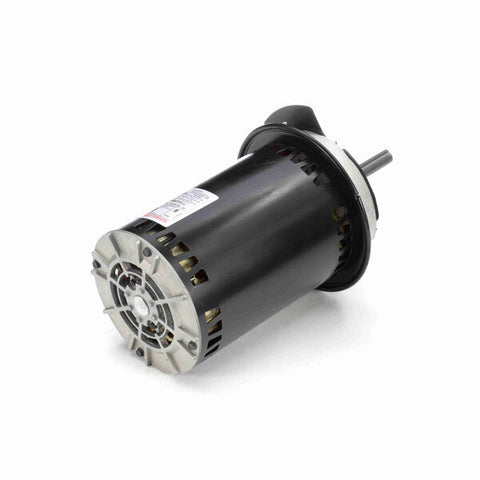

Century OEM Replacement Motor, 1140 RPM, SPL HP, 208-230/460-575 V, 56Z Frame, Open Air Over
- Ball bearings
- 3 Phase
- HM102-0021 replaces the following brands and item numbers: Carrier #HD52AK652 and UE #182779
$1,366.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674070517 |
| Output HP | SPL Hp |
| Frequency | 60 Hz |
| Current | 5.5/2.8-3.4 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | P56Z |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230/460-575 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Polyphase, Induction Type, Single Or Dual Voltage |
| Poles | 6 |
| Mounting | Round Belly Band |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 9.00 in |
| Shaft Extension | 3.63 in |
| Rotation | Reversible Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 15.10 in |
| Shaft Diameter | 0.625 in |
