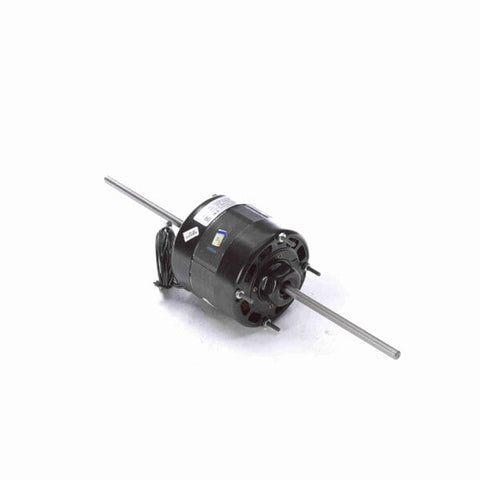

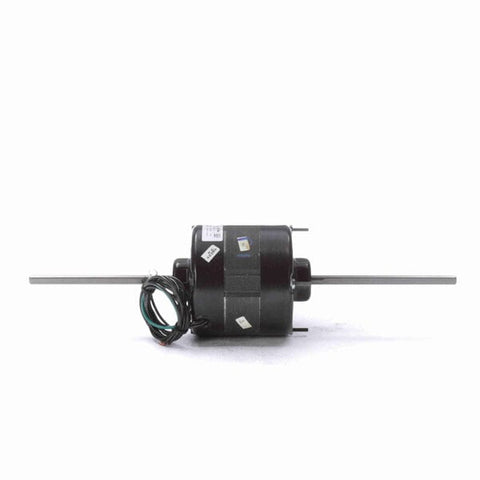

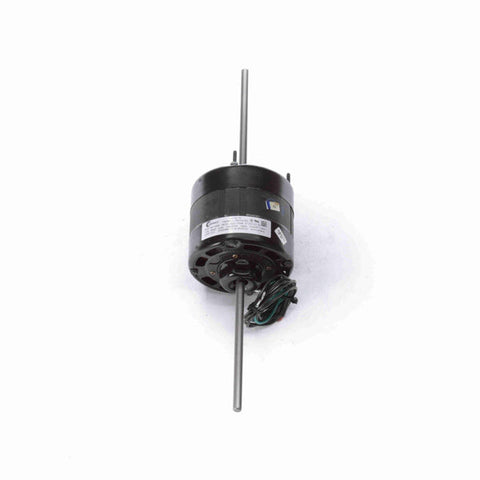

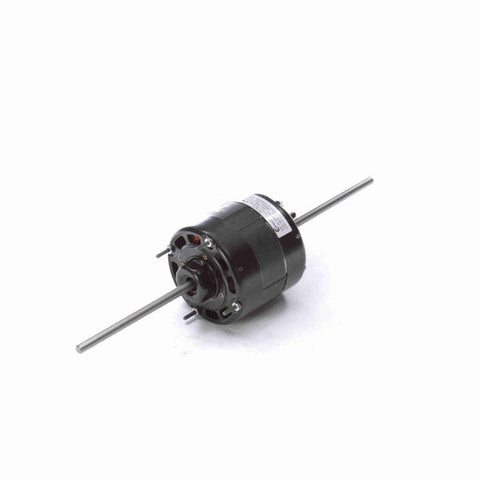

Century OEM Replacement Motor, 1550 RPM, 1/12 HP, 115 V, 4.4" Diameter, Open Air Over
- Fan Coil Motor
- Shaded Pole
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 36" Leads
- Extended Studs Opposite Lead End, Resilient Ring Mounting
- HM102-0033 replaces the following brands and item numbers: Trane, Dunham-Bush, American Standard, Nesbitt, York, Fedders, Carrieer, U.S. Air and other fan coil unit applications
$276.15 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674006011 |
| Output HP | 1/12 Hp |
| Frequency | 60 Hz |
| Current | 2.6 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 4.4 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 6 1/4 X 3/8 X 6 1/4 in |
| Rotation | Clockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 16.38 in |
| Shaft Diameter | 0.375 in |
