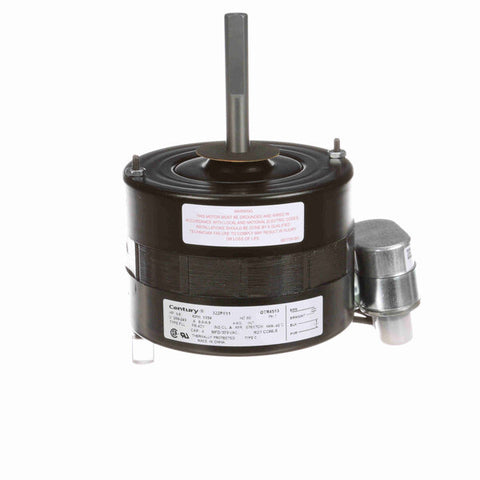

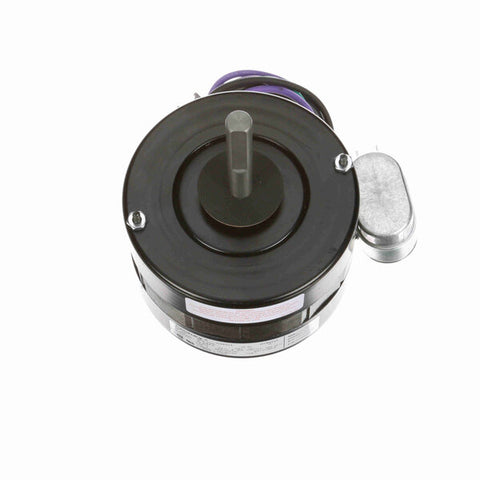

Century OEM Replacement Motor, 1550 RPM, 1/8 HP, 208-240 V, 42 Frame, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 34" Leads with Flag Terminals
- Extended Studs Shaft End
- HM102-0023 replaces the following brands and item numbers: GE #KSP29DK1728S, Trane #WW94X963 and Fasco #D1050
$228.90 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674028600 |
| Output HP | 1/8 Hp |
| Frequency | 60 Hz |
| Current | 0.8-0.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-240 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 3.2 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Na |
| Overall Length | 6.75 in |
| Shaft Diameter | 0.500 in |
