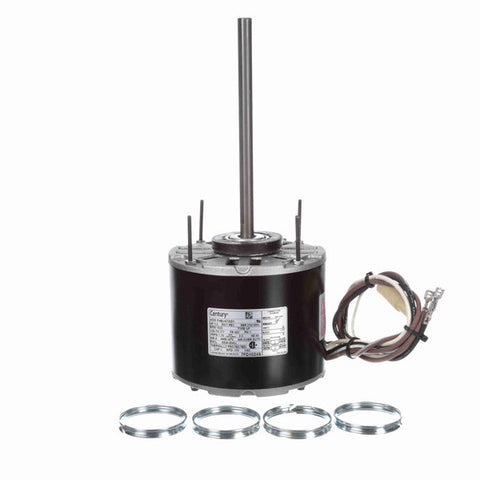

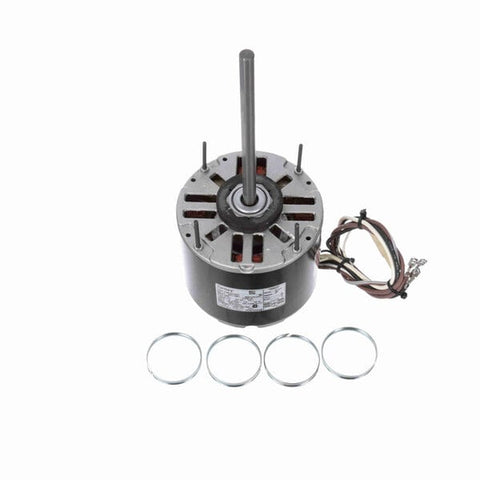

Century OEM Replacement Motor, 1625 RPM, 1/4 HP, 277 V, 48 Frame, Semi Enclosed
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 15" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Resilient Ring Mounting
- HP430-0058 replaces the following brands and item numbers: GE #5KCP39GG7334 motor for Singer/Climate Control hotel and motel heat/cool units
$376.95 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674010896 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.35 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 277 V |
| Speed | 1625 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 50 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Electrical Type:Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.88 in |
| Shaft Extension | 8 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.99 in |
| Shaft Diameter | 0.500 in |
