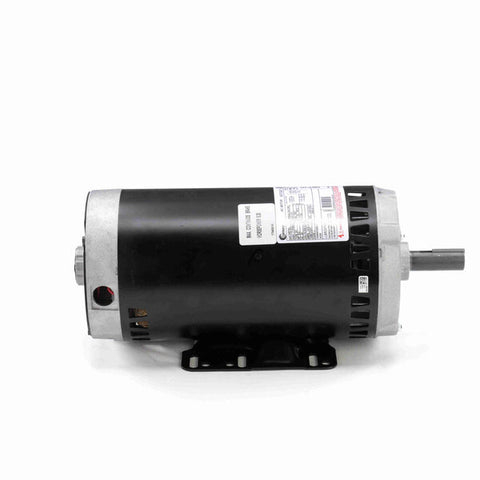

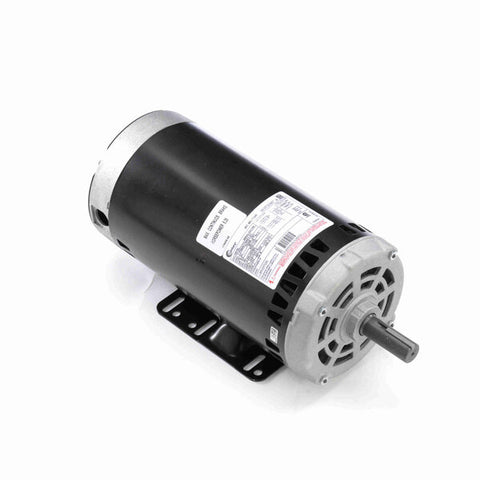

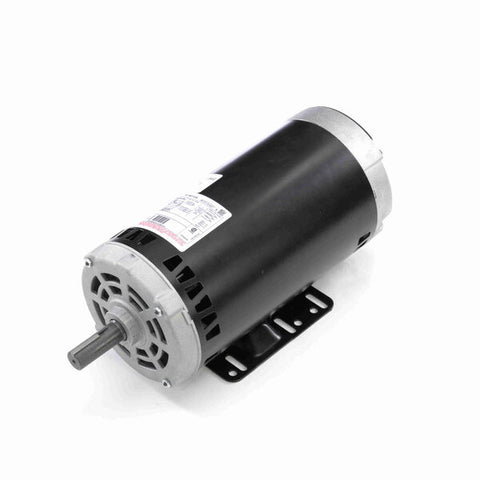

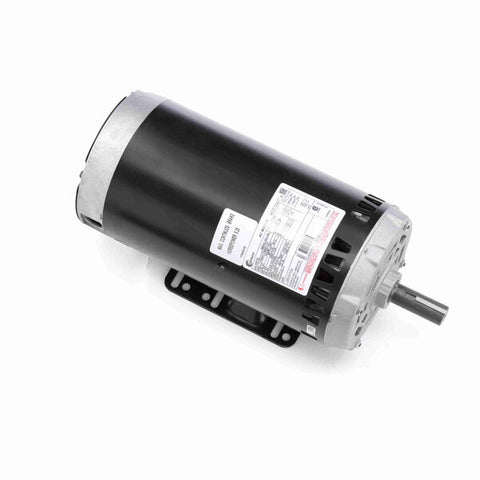

Century OEM Replacement Motor, 1725 RPM, 5 HP, 208-230/460 V, 56Y Frame, Open Drip Proof
- Ball bearings
- 3 Phase
- HM102-0022 replaces the following brands and item numbers: Carrier/BDP, HD60FK652 AND 182779
$1,785.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674056528 |
| Output HP | 5.0 Hp |
| Frequency | 60 Hz |
| Current | 14.5-14.4/7.2 A |
| Service Factor | 1.15 |
| Duty | Continous |
| Frame | Y56Y |
| Thermal Protection | None |
| UL | Recognized |
| Voltage | 208-230/460 V |
| Speed | 1725 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Open Drip Proof |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Polyphase, Induction Type, Single Or Dual Voltage |
| Poles | 4 |
| Mounting | Rigid Base |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 10.38 in |
| Shaft Extension | 2.31 in |
| Rotation | Reversible Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 16.32 in |
| Shaft Diameter | 0.875 in |
