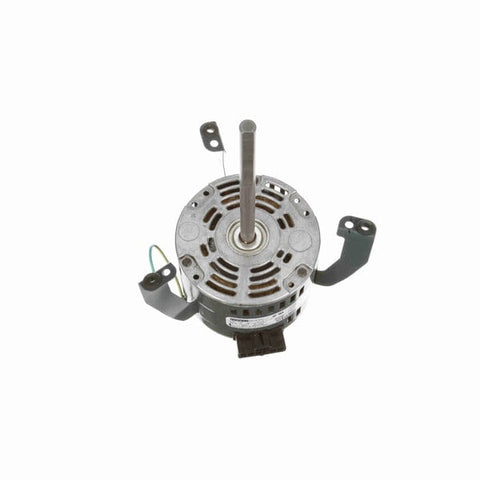

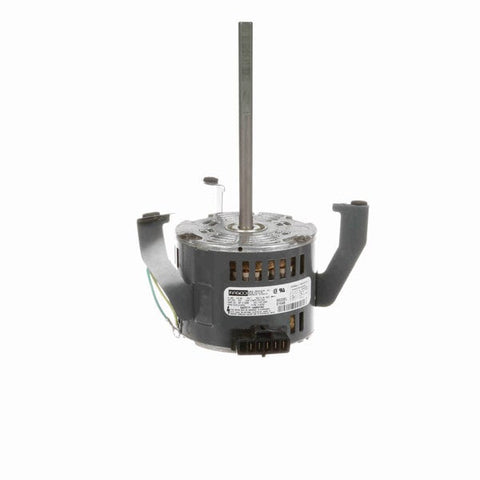

Fasco OEM Replacement Motor, 1075 RPM, 1/20 HP, 265 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- Terminal Block
- Flex Mount
- HM102-0057 replaces the following brands and item numbers: IEC #5KCP29FK6017S, 5KCP29FK8388S, 705563-08
$327.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027744 |
| Output HP | 1/20 Hp |
| Frequency | 60 Hz |
| Current | 0.40 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 265 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Lug |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.83 in |
| Shaft Extension | 7.15 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Overall Length | 11.02 in |
| Shaft Diameter | 0.500 in |
