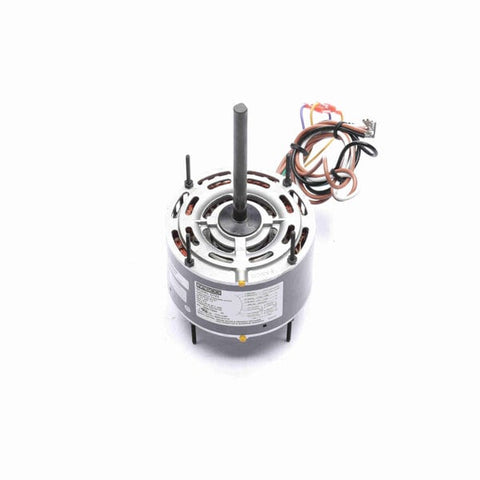

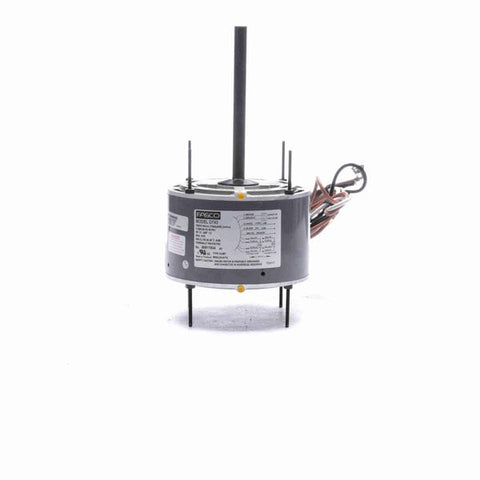

Fasco Condenser Fan Motor, 1075 RPM, 1/5 HP, 208-230 V, 48 Frame, Open Drip Proof
- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shell on Shaft End and Shaft End End-Frame, Enclosed Shell on Lead End and Lead End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End, Belly Band
$226.00 USD
PRODUCT INFO
Applications
Used for vertical or horizontal shaft applications where the motor is located in the airstream
Features
Automatic thermal protection. 208-230V. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508021317 |
| Output HP | 1/5 Hp |
| Frequency | 60 Hz |
| Current | 1.12 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Drip Proof |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 3.74 in |
| Shaft Extension | 6.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Shaft Diameter | 0.500 in |
