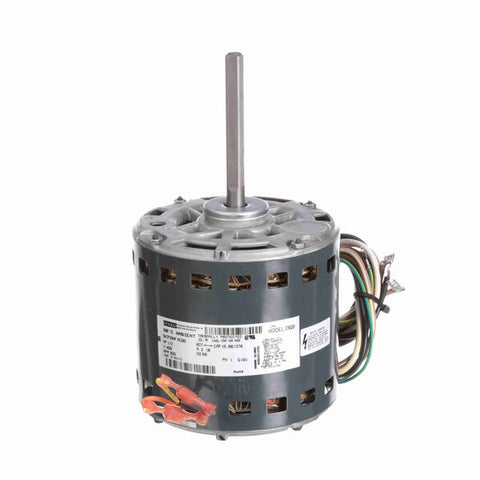

Fasco Condenser Fan Motor, 825 RPM, 1/2 HP, 460 V, 48 Frame, Open Air Over
- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Belly Band
$499.00 USD
PRODUCT INFO
Applications
Primarily used in commercial rooftop air conditioning units
Features
Automatic thermal protection. Class B insulation systems. Lead end bell open all models, shaft end bell closed except as noted. Rotation: electrically reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508020594 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 2.10 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 825 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 8 |
| Mounting | Round |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 4.57 in |
| Shaft Extension | 4.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length: | 10.13 in |
| Shaft Diameter | 0.500 in |
