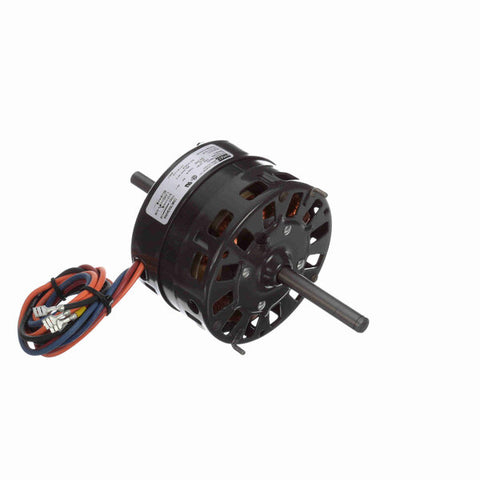

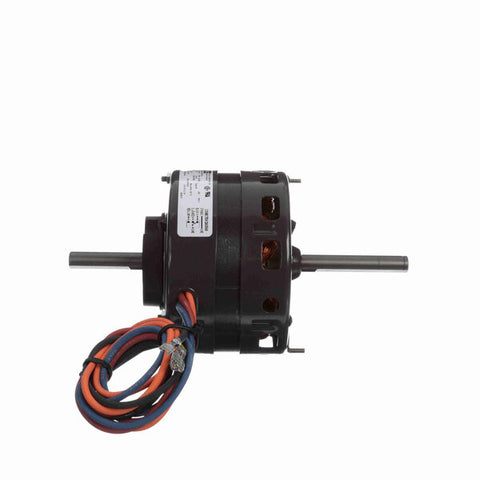

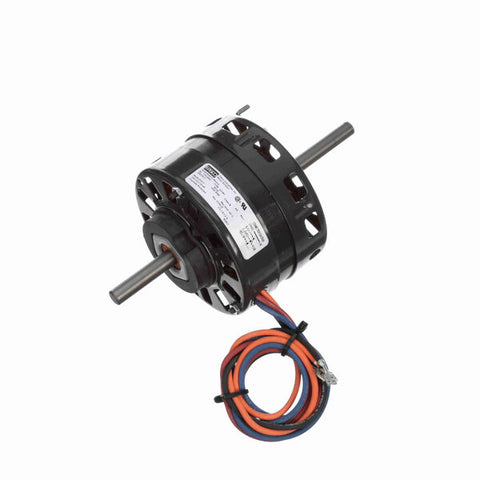

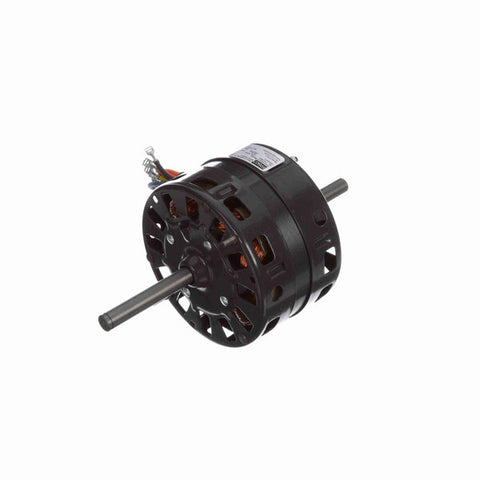

Fasco OEM Replacement Motor, 1050 RPM, 1/6-1/12-1/15 HP, 208-230 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 25" Leads with Quick Connect Terminals
- Extended Studs
- HM102-0076 replaces the following brands and item numbers: Fedders models listed: #S196-42-1 and S196-161-3
$192.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027522 |
| Output HP | 1/16-1/12-1/15 Hp |
| Frequency | 60 Hz |
| Current | 2.51-1.6-1.2 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 3.33 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Na |
| Overall Length | 9.38 in |
| Shaft Diameter | 0.500 in |
