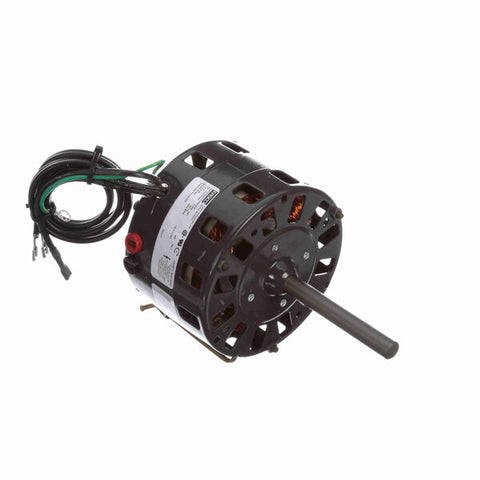

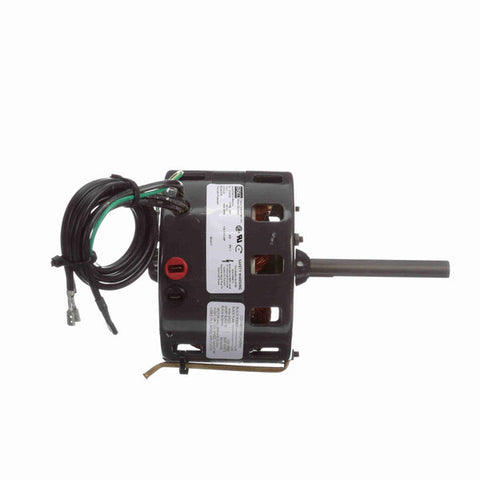

Fasco OEM Replacement Motor, 1050 RPM, 1/8-1/11 HP, 115 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Protected
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- Terminal Block
- Flex Mount
- HP430-0058 replaces the following brands and item numbers: International Oil Burner Co. models #MAC5A, 1045, 1052, 1060, 1145, 1155, 1165, 1175, 1265, 1380, 7040 and 7060
$185.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028826 |
| Output HP | 1/8-1/11 Hp |
| Frequency | 60 Hz |
| Current | 4.5/3.4 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Belly Band |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 4.00 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Na |
| Overall Length | 7.81 in |
| Shaft Diameter | 0.500 in |
