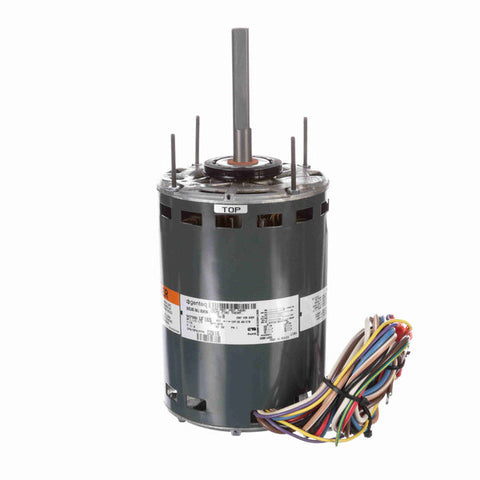

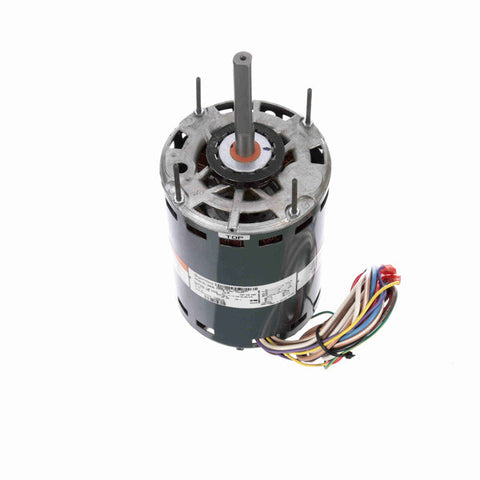

Fasco OEM Replacement Motor, 1075 RPM, 1-1/2-1/3 HP, 115 V, 48 Frame, Open Air Over
- 5.6" Diameter - 48 Frame
- Sleeve Bearing
- 5/8" Diameter Shaft with Double Flat
- 37" Leads
- Extended Mounting Studs Shaft End, Resilient Mounting Ring Shaft End and Lead End
- HM102-0078 replaces the following brands and item numbers: Lennox #P8-8326 and GE #5KCP49SG1008S
$455.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022338 |
| Output HP | 1-1/2-1/3 Hp |
| Frequency | 60 Hz |
| Current | 11.0 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 7.20 in |
| Shaft Extension | 4.16 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.79 in |
| Shaft Diameter | 0.620 in |
