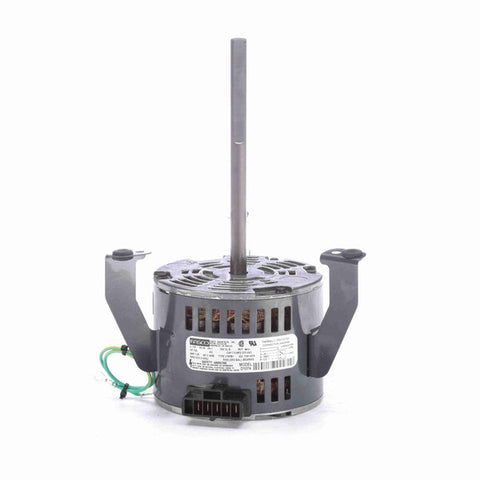

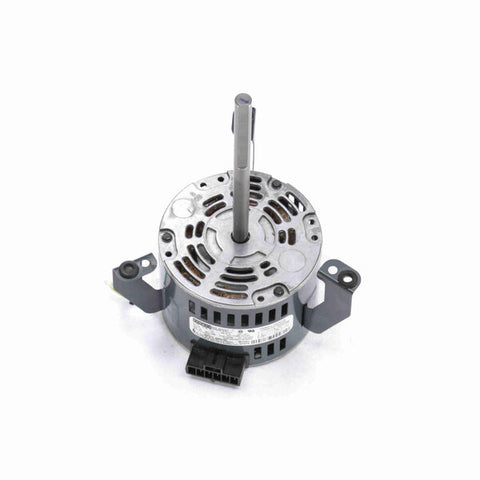

Fasco OEM Replacement Motor, 1075 RPM, 1/20 HP, 115 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- Terminal Block
- Flex Mount
- HM102-0080 replaces the following brands and item numbers: Carrier #E020-705563-02 and 7817-0299
$299.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027904 |
| Output HP | 1/20 Hp |
| Frequency | 60 Hz |
| Current | 1.25 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Bracket |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.38 in |
| Shaft Extension | 2.00 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 10.87 in |
| Shaft Diameter | 0.500 in |
