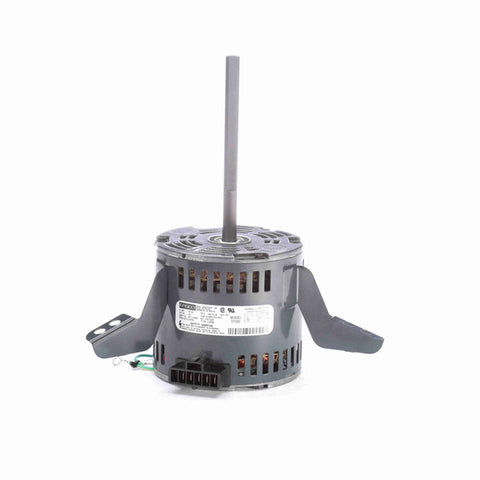

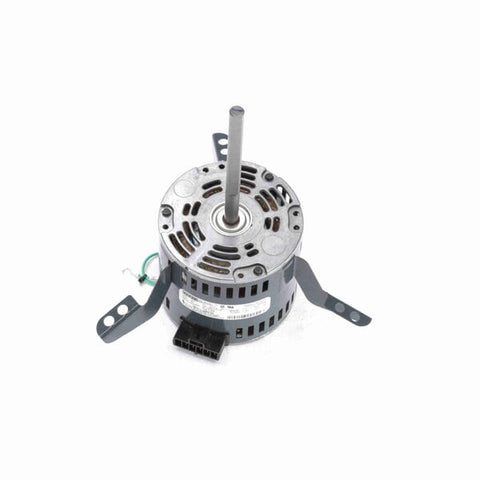

Fasco OEM Replacement Motor, 1075 RPM, 1/4 HP, 265 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- Terminal Block
- Flex Mount
- HM102-0014 replaces the following brands and item numbers:I EC #5KCP29MK6021S, 5KCP29MK8386S, 705563-12
$307.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027683 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.6 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 265 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Bracket |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 5.56 in |
| Shaft Extension | 6.25 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Overall Length | 10.87 in |
| Shaft Diameter | 0.500 in |
