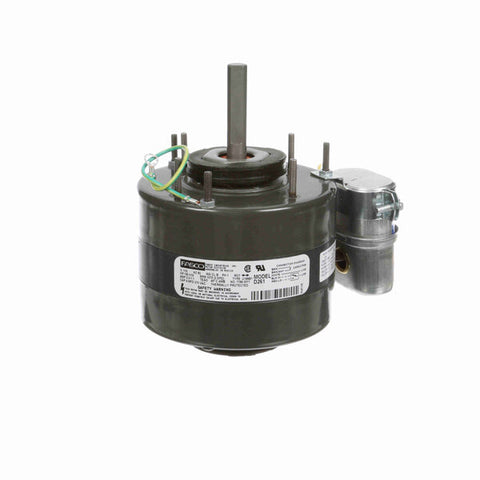

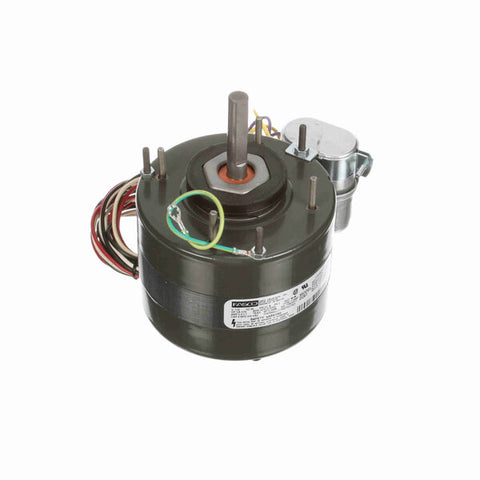

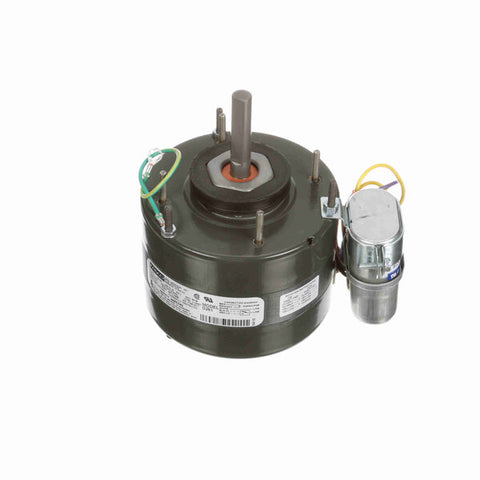

Fasco OEM Replacement Motor, 1075 RPM, 1/8-1/15 HP, 115 V, 42 Frame, Totally Enclosed Air Over
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 58" Leads with .5" Strip
- Extended Studs Shaft End, Resilient Mounting Ring Shaft end and Lead End
- HM102-0061 replaces the following brands and item numbers: for Sterling Radiator Company unit heater motors
$379.00 USD
PRODUCT INFO
Applications
Direct replacement for Sterling Radiator Company unit heater motors
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029366 |
| Output HP | 1/8-1/15 Hp |
| Frequency | 60 Hz |
| Current | 2.3-1.1 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 3 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 7.34 in |
| Shaft Diameter | 0.500 in |
