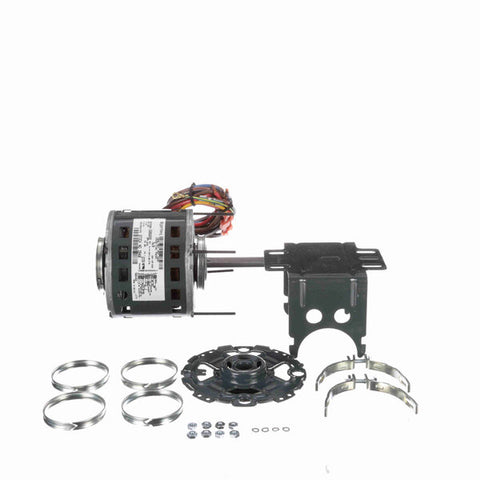

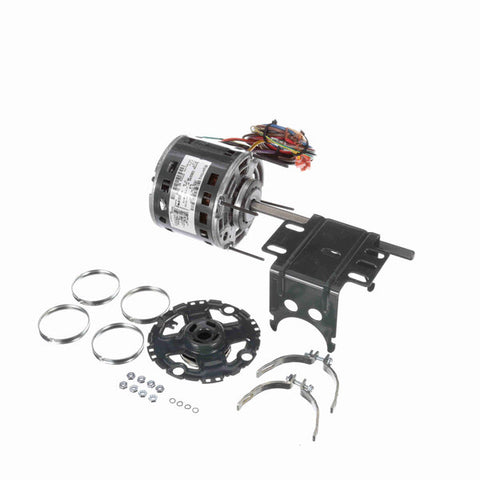

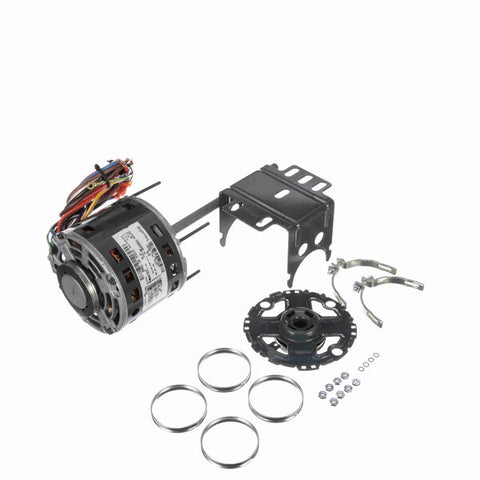

Genteq OEM Replacement Motor, 1075 RPM, 1/30 HP, 115 V, 42 Frame, Open Air Over
- Direct Drive Fan & Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Resilient Ring Mounting, Extended Clampbolts
- HM102-0062 replaces the following brands and item numbers: GE #5KC29BG5866S
$350.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585020844 |
| Output HP | 1/30 Hp |
| Frequency | 60 Hz |
| Current | 0.61 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.16 in |
| Shaft Extension | 8.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.45 in |
| Shaft Diameter | 0.500 in |
