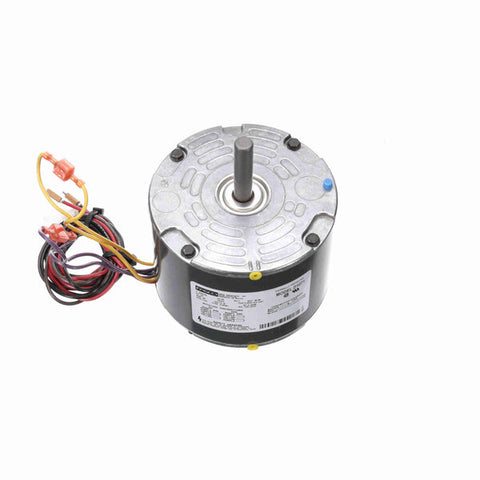

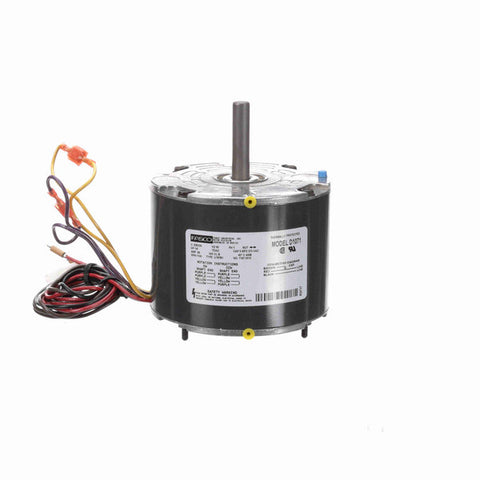

Fasco OEM Replacement Motor, 1100 RPM, 1/6 HP, 208/230 V, 42 Frame, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads with Teminal Housing
- Extended Studs Lead End, Belly Band Mount
$254.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027898 |
| Output HP | 1/6 Hp |
| Frequency | 60 Hz |
| Current | 0.99 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208/230 V |
| Speed | 1100 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Bracket |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 3.38 in |
| Shaft Extension | 2.2 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 6.02 in |
| Shaft Diameter | 0.500 in |
