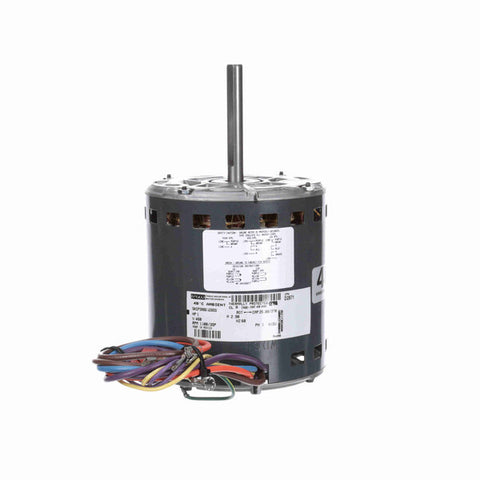

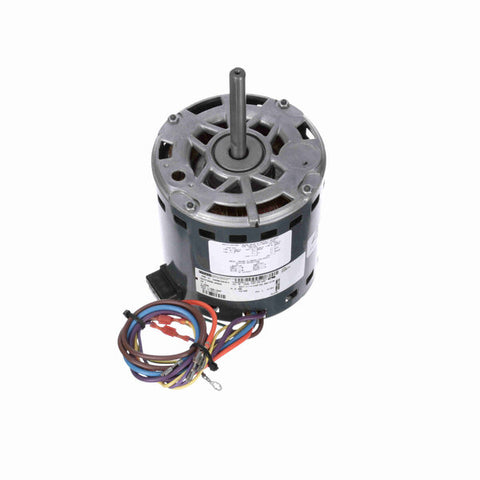

Fasco OEM Replacement Motor, 1100 RPM, 1 HP, 460 V, 48 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- Terminal Block
- Clamp Screw Opposite Shaft End, Belly Band Mount
- HM102-0072 replaces the following brands and item numbers: York #024-21673, Emerson #K55HXJFJ-2832 and GE #5KCP39SGH913BS
$779.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022420 |
| Output HP | 1 Hp |
| Frequency | 60 Hz |
| Current | 2.90 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1100 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 5.32 in |
| Shaft Extension | 3.50 in |
| Rotation | Reversible |
| Frame Material | Rolled Stee |
| Overall Length | 9.56 in |
| Shaft Diameter | 0.500 in |
