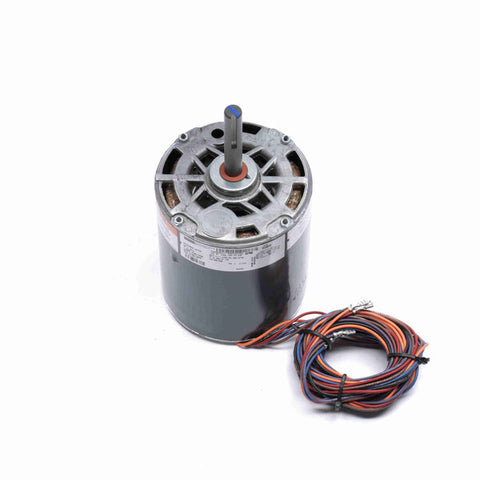

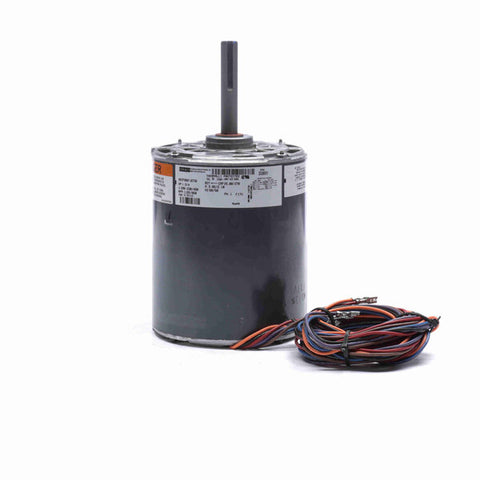

Fasco OEM Replacement Motor, 1125/950 RPM, 1-3/4 HP, 208-230/460 V, 48 Frame, Open Air Over
- OEM Direct Replacement Motor
- Permanent Split Capacitor
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Ball Bearing
- 5/8" Diameter Shaft with Keyway
- 97" Leads
- Belly Band Mount
- HM102-0054 replaces the following brands and item numbers: Trane and Fasco models: X70671653-01,X70671656-01, X70671654, X70671652-01, MOT9192, MOT9188, 7126-4088, 7126-4089, 7126-4090, 7126-4299
$637.00 USD
PRODUCT INFO
Features
Single-speed, 50/60 Hz. Sealed ball bearings; open drip-proof. Automatic thermal protection; Class B insul., 40°C ambient. HM102-0054 has a keyed shaft.
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022406 |
| Output HP | 1-3/4 Hp |
| Frequency | 60 Hz |
| Current | 3.95/2.10 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 (5.6" Diameter) |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230/460 V |
| Speed | 1125/950 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 65 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Lug |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 6.07 in |
| Shaft Extension | 3.25 in |
| Rotation | Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 10.46 in |
| Shaft Diameter | 0.620 in |
