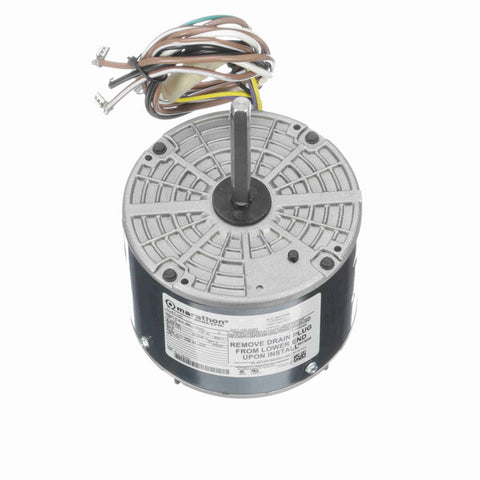

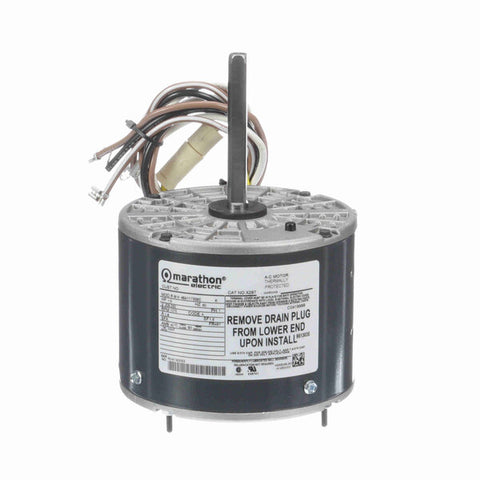

Marathon OEM Replacement Motor, 1200 RPM, 1/3 HP, 208-230 V, 48Y Frame, Totally Enclosed Air Over
- Frame and opposite shaft end bracket are enclosed for vertical shaft down mounting
- Weather resistant reversing plug
- 30” Long leads
- Shaft slinger
- 1-1/4” Extended thru-bolts on shaft end
- Automatic reset thermal protector
- Totally enclosed, non-ventilated
- End bracket weep holes with removable plugs, remove bottom plug after installation
- 1/2" thru-bolts, opposite shaft end
- Foot locating set screws on frame, 90° apart
$264.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856048936 |
| Output HP | 0.33 Hp |
| Frequency | 60 Hz |
| Current | 1.9-1.8 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | 48Y |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round - Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 3.75 in |
| Shaft Extension | 3.81 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 8.06 in |
| Shaft Diameter | 0.500 in |
