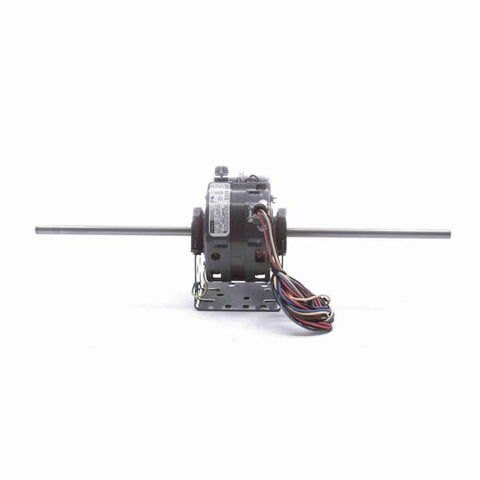

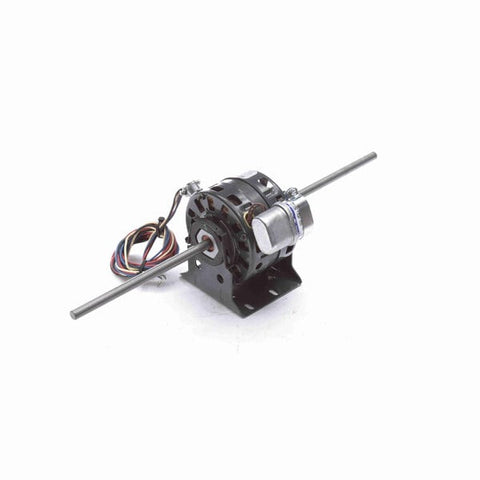

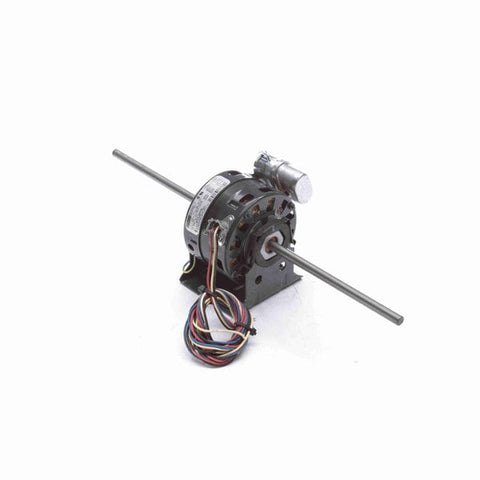

Fasco OEM Replacement Motor, 1450 RPM, 1/6 HP, 115-127 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 71" Leads
- Resilient Base
- HM102-0052 replaces the following brands and item numbers: 5KCP29DK8384S, S89208
$323.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027829 |
| Output HP | 1/6 Hp |
| Frequency | 60 Hz |
| Current | 2.3 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 (5" Diameter) |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115-127 V |
| Speed | 1450 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 8.75 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Na |
| Overall Length | 21.02 in |
| Shaft Diameter | 0.500 in |
