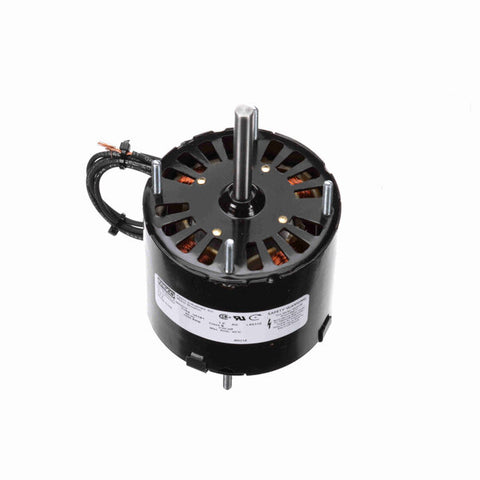

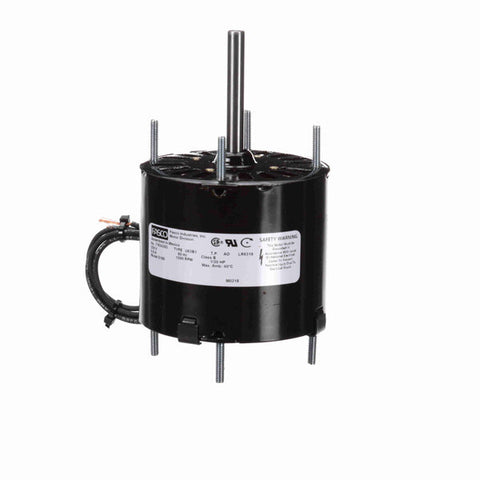

Fasco OEM Replacement Motor, 1500 RPM, 1/20 HP, 230 V, 3.3" Diameter, Open Air Over
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
$117.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028871 |
| Output HP | 1/20 Hp |
| Frequency | 60 Hz |
| Current | 0.90 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 230 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 2.62 in |
| Shaft Extension | 2.30 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 5.47 in |
| Shaft Diameter | 0.313 in |
