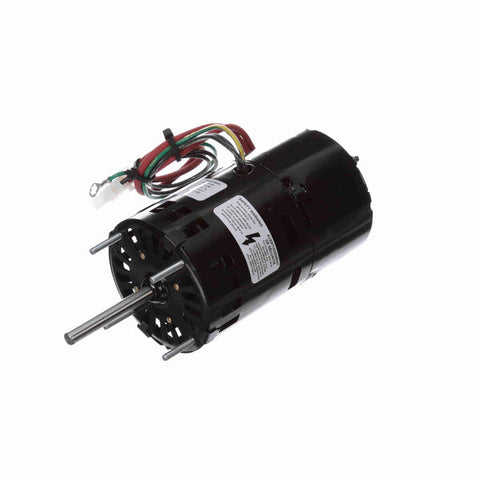

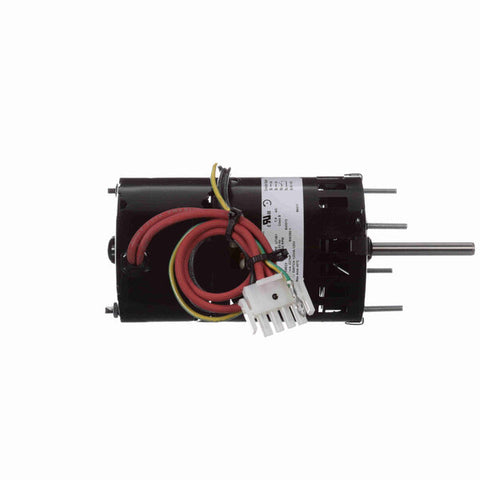

Fasco OEM Replacement Motor, 1500 RPM, 1/37 HP, 115 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Open Shaft End End-Frame and Shell, Enclosed Lead End End-Frame, Air Over
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 10" Leads with Terminal Housing
- Extended Studs Shaft End
- HM102-0064 replaces the following brands and item numbers: several different Miller/Nordyne furnace blower motors
$227.00 USD
PRODUCT INFO
Features
Single-speed, shaded pole. Open construction
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508020846 |
| Output HP | 0.027 Hp |
| Frequency | 60 Hz |
| Current | 1.00 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.20 in |
| Shaft Extension | 2.5 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 8.37 in |
| Shaft Diameter | 0.313 in |
