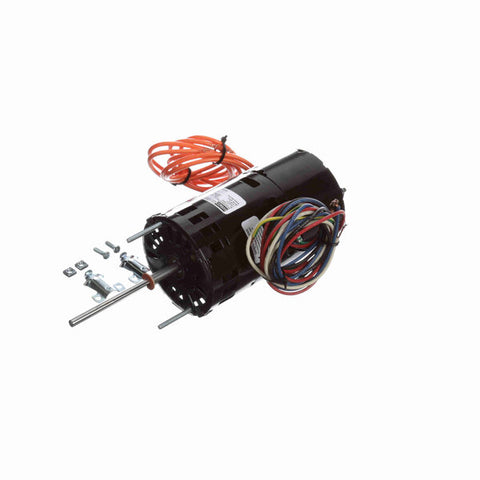

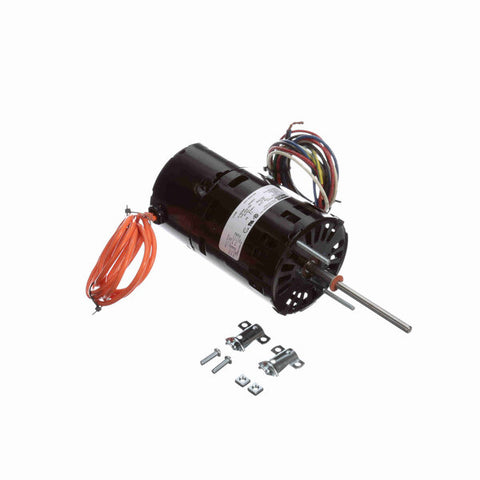

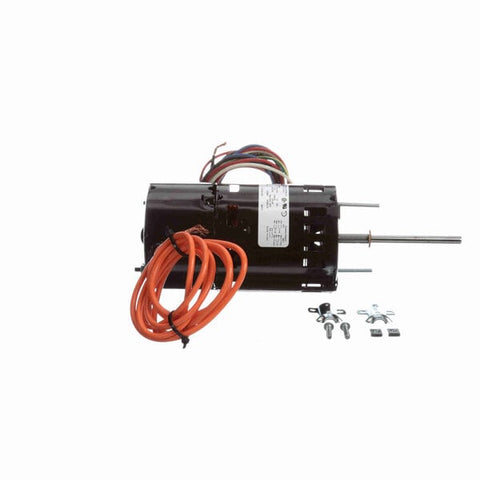

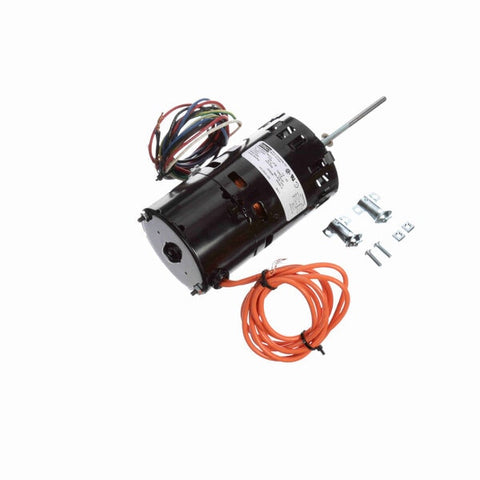

Fasco OEM Replacement Motor, 3000 RPM, 1/30 HP, 115/230 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Open Shaft End End-Frame and Shell, Enclosed Lead End End-Frame, Air Over
- Ball Bearing
- 1/4" Diameter Shaft with Flat
- 32" Power Leads, 32" Switch Leads
- Extended Studs Shaft End
- HM102-0070 replaces the following brands and item numbers: for motors used in Carrier high-efficiency gas furnaces
$295.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508020006 |
| Output HP | 1/30 Hp |
| Frequency | 60 Hz |
| Current | 1.3/.65 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115/230 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 3.53 in |
| Shaft Extension | 3.8 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 9.78 in |
| Shaft Diameter | 0.250 in |
