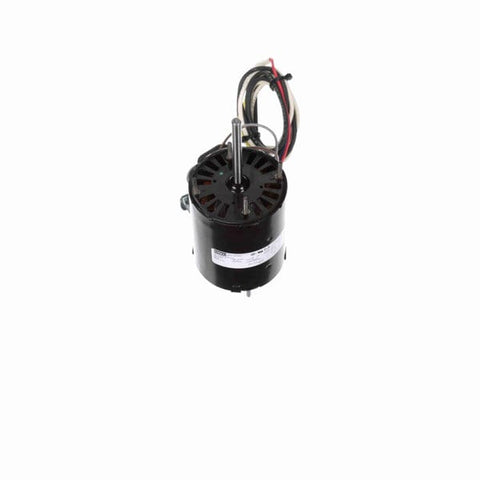

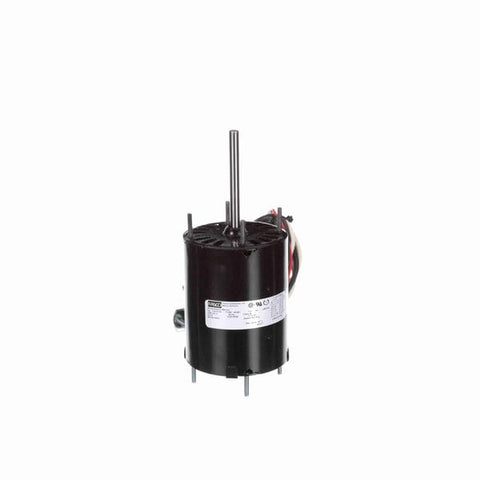

Fasco OEM Replacement Motor, 3200 RPM, 1/10 HP, 208-230V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Open Opposite Lead End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End and Opposite Shaft End
- HM102-0074 replaces the following brands and item numbers: CW175-40069, 7162-0293, CCW505-43424, 7162-0348, CCW175-40070, 7162-0294
$487.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029861 |
| Output HP | 1/10 Hp |
| Frequency | 60 Hz |
| Current | 0.8 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 3200 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 4.01 in |
| Shaft Extension | 3.25 in |
| Rotation | Reversible |
| Frame Material | Steel |
| Overall Length | 7.80 in |
| Shaft Diameter | 0.312 in |
