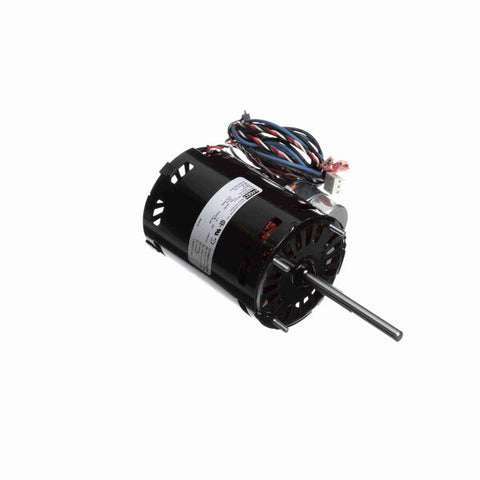

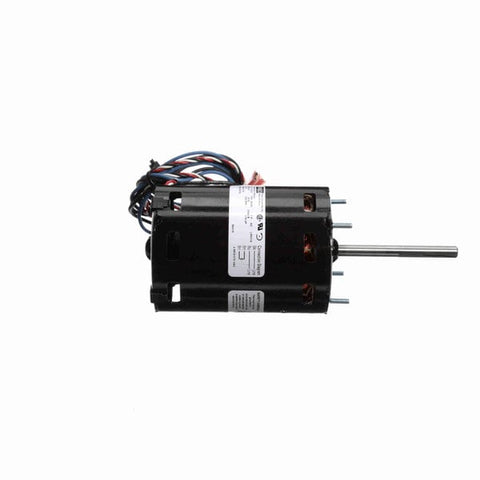

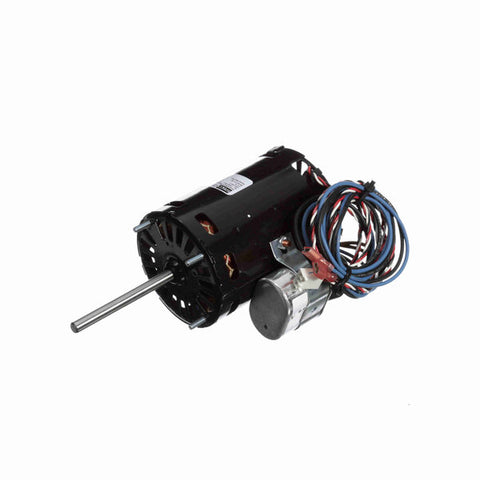

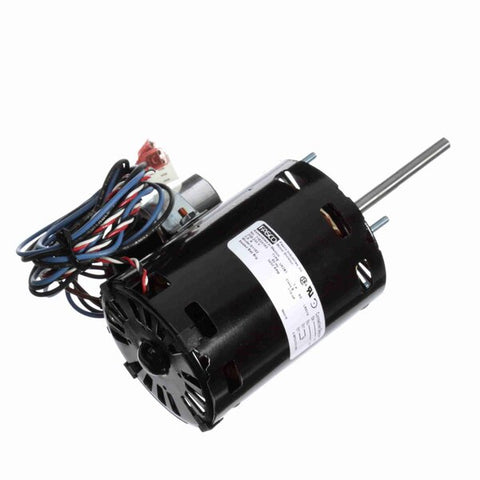

Fasco OEM Replacement Motor, 3450 RPM, 1/16 HP, 208/230 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Ball Bearing
- 5/16" Diameter Shaft with Double Flat
- 52" Leads with Terminal Housing
- Extended Studs Shaft End
- HM102-0049 replaces the following brands and item numbers: 7162-3367, HC30GB23OB, K33HXCCP-915, HC3OGB230
$366.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028031 |
| Output HP | 1/16 Hp |
| Frequency | 60 Hz |
| Current | 0.6 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208/230 V |
| Speed | 3450 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 4.33 in |
| Shaft Extension | 3.35 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 8.16 in |
| Shaft Diameter | 0.312 in |
