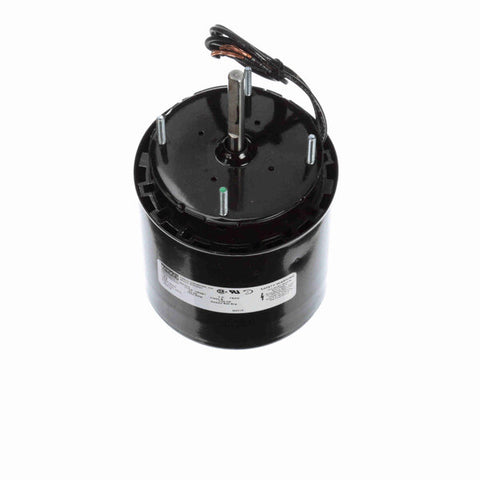

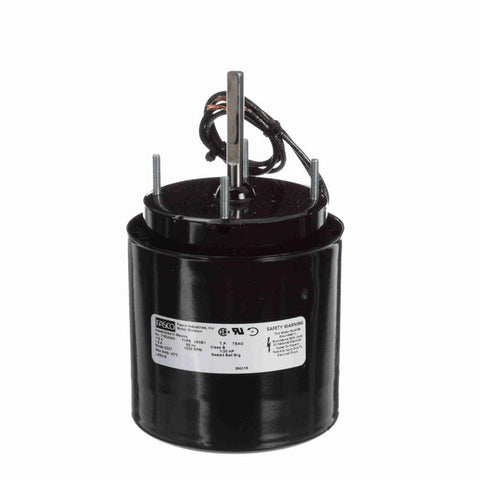

Fasco Unit Heater-Blower, 1500 RPM, 1/20 HP, 115 V, 3.3" Diameter, Totally Enclosed Fan Cooled
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Fan Cooled, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End
$266.00 USD
PRODUCT INFO
Applications
Central heating and direct drive blower units in humid or dusty areas
Features
Thermally protected |Shaft: flatted |Cooling case may be removed if necessary to use as totally enclosed motor. Studs: four, 3/4" long on 2.84" centers, #8-32 thread
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029137 |
| Output HP | 1/20 Hp |
| Frequency | 60 Hz |
| Current | 1.80 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 2.82 in |
| Shaft Extension | 2.30 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 6.57 in |
| Shaft Diameter | 0.312 in |
