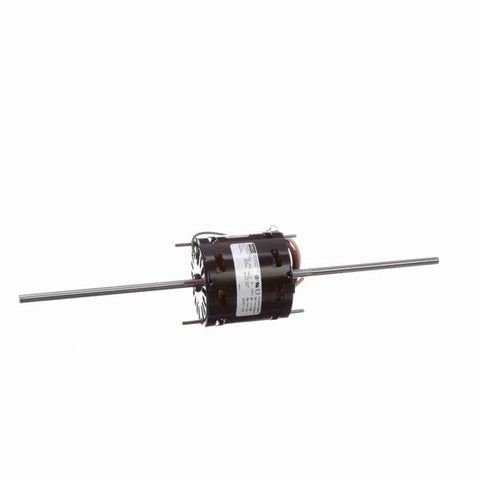

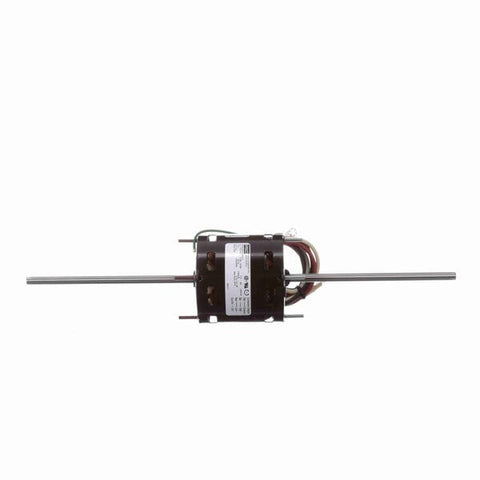

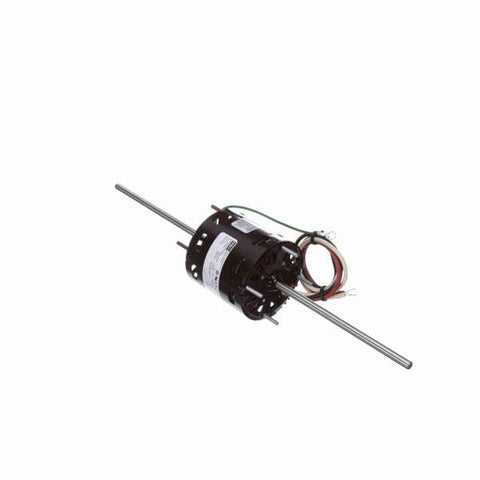

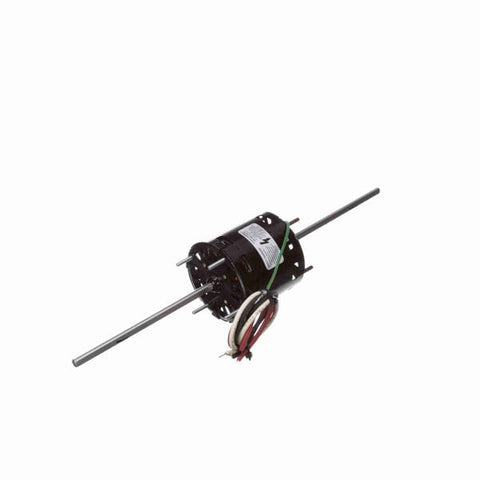

Fasco Window+Room Air Conditioniq, 1500 RPM, 1/14-1/21 HP, 115 V, 3.3" Diameter, Open Air Over
- Window Air-Conditioning Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 15" Leads
- Extended Studs Lead and Opposite Lead End
$167.00 USD
PRODUCT INFO
Applications
Excellent replacements for small window air conditioners
Features
Can be mounted by band or studs, overload protection. Four 3/4" long studs on 2.84" centers. Shaft length is the same on both ends
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029755 |
| Output HP | 1/14-1/21 Hp |
| Frequency | 60 Hz |
| Current | 2.50/1.50 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.01 in |
| Shaft Extension | 6.375 in |
| Rotation | Reversible |
| Frame Material | Steel |
| Overall Length | 16.09 in |
| Shaft Diameter | 0.313 in |
