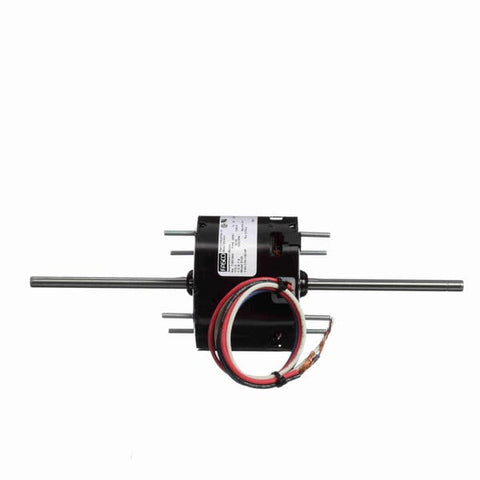

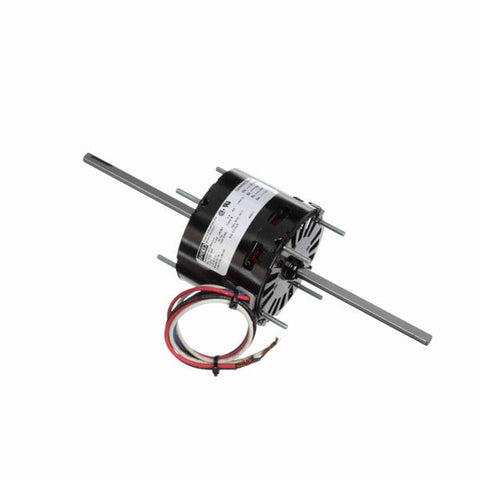

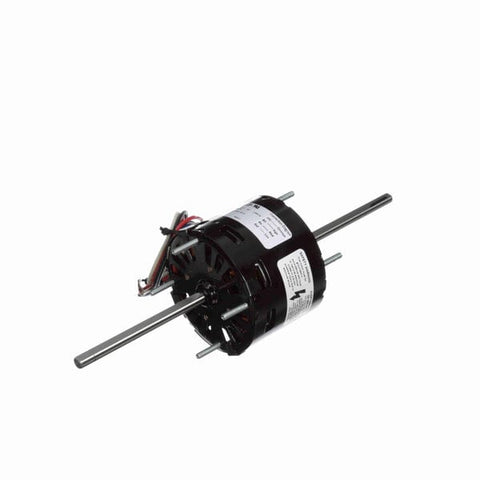

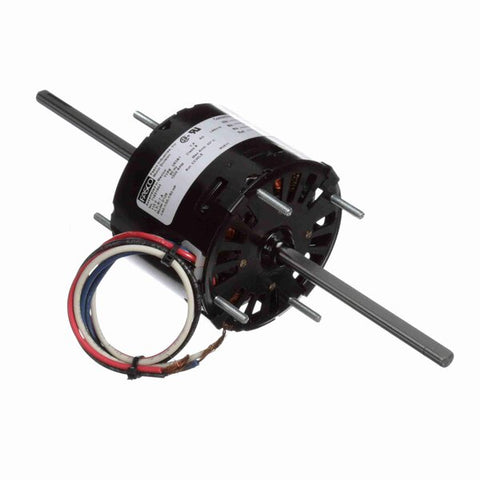

Fasco Window+Room Air Conditioniq, 1500 RPM, 1/40-1/50-1/80 HP, 115 V, 3.3" Diameter, Open Air Over
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount
$181.00 USD
PRODUCT INFO
Applications
Widely used on fans and blowers
Features
Studs: Four extended on each end, 9/16" long on 2.84" centers. Two black leads 14" long, 18 gauge. Non-reversible, thermal overload protector
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028499 |
| Output HP | 1/40-1/50-1/80 Hp |
| Frequency | 60 Hz |
| Current | 1.30/0.90/0.70 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 2.32 in |
| Shaft Extension | 4.00 in |
| Rotation | Clockwise Lead End |
| Frame Material | Steel |
| Overall Length | 10.63 in |
| Shaft Diameter | 0.313 in |
