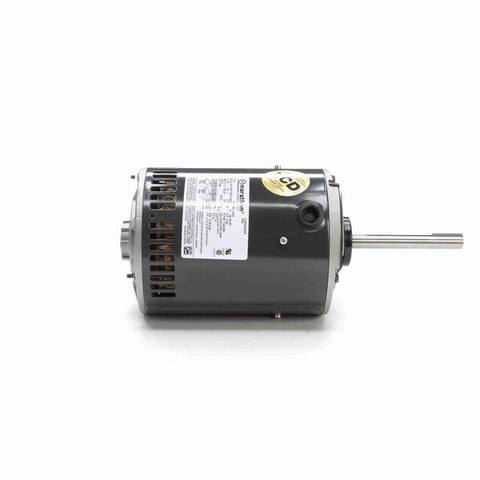

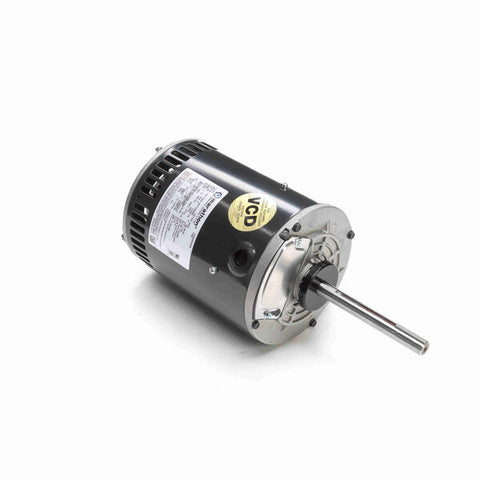

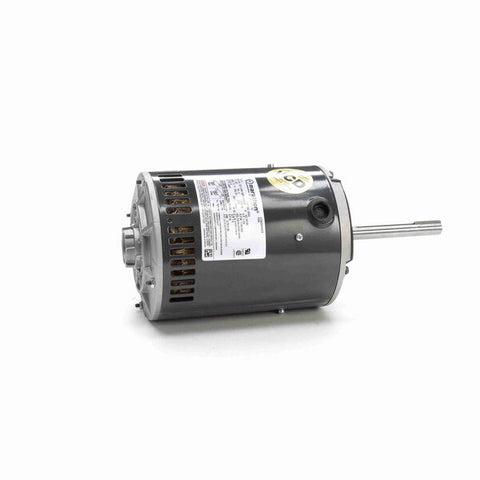

Marathon Condenser Fan Motor, 1140 RPM, 1 HP, 200-230/460 V, 56Y Frame, Open Air Over
- 70°C ambient
- Enclosed shaft end bracket, vented frame
- Automatic reset thermal protector
- Nameplate 60/50 hertz 190/380 volts, at next lower HP
- Double sealed ball bearings
- 5/8” Dia. x 5” long shaft with flat and keyway
- Threaded lead exit
- Patented VCD™ - Voltage Change Device
- 4 Locating screws 90 degrees apart, 3.33” from outer edge of shaft slinger
- Hubs on both ends will accept resilient base kits, see Accessories section
- 3 Phase
$619.00 USD
PRODUCT INFO
Applications
Commercial condenser fans may be installed outdoors. Used on Trane, Carrier, Climatrol, and York units 5 tons and larger
Features
Automatic reset thermal protection Horizontal mount only 70°C ambient Shaft end bell closed, open opposite end Rotation: reversible |Belly band mount and will accept resilient base kits 26" leads Features unique voltage change device for simplified voltage change Four locating screws 90° apart, 3-3/8” from outer edge of shaft slinger 1.0 Service Factor Ball Bearing Continuous Duty
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856038425 |
| Output HP | 1 Hp |
| Frequency | 60/50 Hz |
| Current | 4.0-4.2/2.1 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | 56Y |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 200-230/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | H |
| Enclosure | Open Air Over |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Squirrel Cage Induction Run |
| Poles | 6 |
| Mounting | Round Belly Band |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 7.56 in |
| Shaft Extension | 5.06 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 15.06 in |
| Shaft Diameter | 0.625 in |
