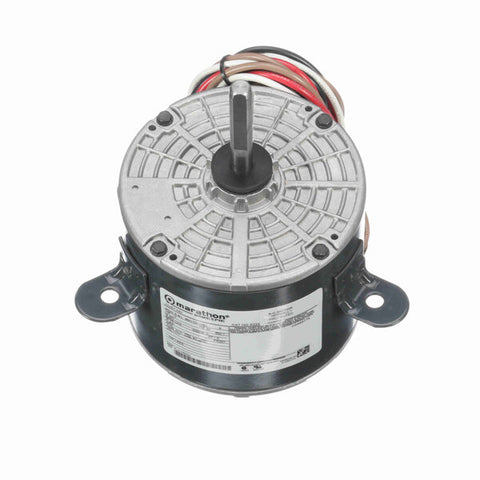

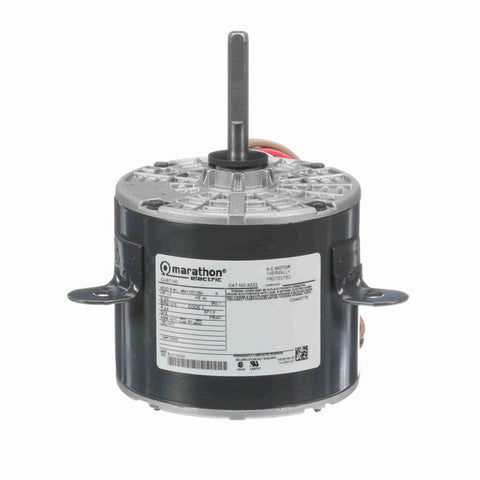

Marathon OEM Replacement Motor, 1075 RPM, 1/3 HP, 230 V, 48 Frame, Open Air Over
- Multi-speed model, as noted, 3 lug mounting
- Capacitor not included, see Accessories section
- Ball bearings
- HM102-0019 replaces the following brands and item numbers: Carrier HC41VE700 & 701
$242.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856041937 |
| Output HP | 0.33 Hp |
| Frequency | 60 Hz |
| Current | 2.6 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | 48Y |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Three Lug Mount |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 4.25 in |
| Shaft Extension | 3.06 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 8.25 in |
| Shaft Diameter | 0.500 in |
