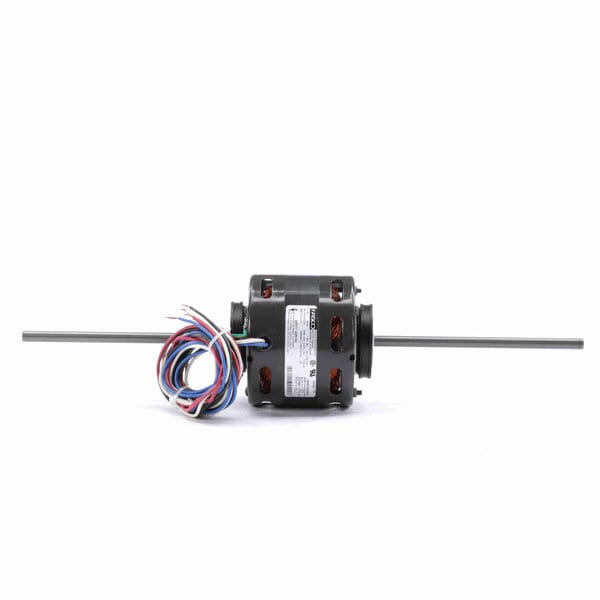

Fasco Window+Room Air Conditioniq, 1550 RPM, 1/10-1/15-1/25 HP, 115 V, 4.4" Diameter, Open Air Over
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 60" Leads
- Resilient Mounting Rings
$335.00 USD
PRODUCT INFO
Applications
Used in hotels, motels, offices and hospitals where a central system pumps hot or cold water or refrigerants to remote units |This line is unusually broad to provide replacements with a minimum of modification and at the same time closely match performance of the original motor
Features
Multiple-speed, thermally protected. Leads: 60" long for HM105-0036. Shaft: flatted both ends; resilient rings: 2-1/2" diameter, supplied. Shaft length is the same on both ends
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029625 |
| Output HP | 1/10-1/15-1/25 Hp |
| Frequency | 60 Hz |
| Current | 3.5-2.4-1.8 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 4.4 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 7.5 in |
| Rotation | Clockwise Lead End |
| Frame Material | Steel |
| Overall Length | 18.51 in |
| Shaft Diameter | 0.375 in |
