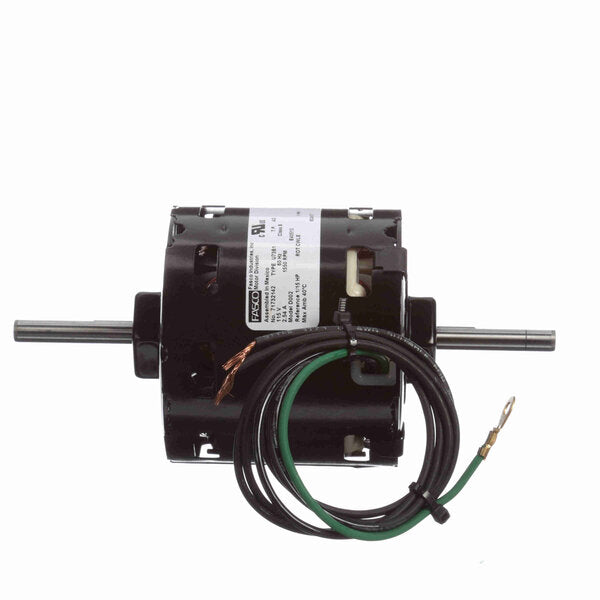

Fasco Window+Room Air Conditioniq, 1550 RPM, 1/15 HP, 115 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 23" Leads
$290.00 USD
PRODUCT INFO
Applications
Double blower, room air conditioning, heaters |OEM replacements for Thermador and more
Features
Continuous duty. Thermally protected
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027119 |
| Output HP | 1/15 Hp |
| Frequency | 60 Hz |
| Current | 2.54 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Hexagonal Hubs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 2.82 in |
| Shaft Extension | 8.50 in |
| Rotation | Clockwise Lead End |
| Frame Material | Na |
| Overall Length | 6.92 in |
| Shaft Diameter | 0.313 in |
